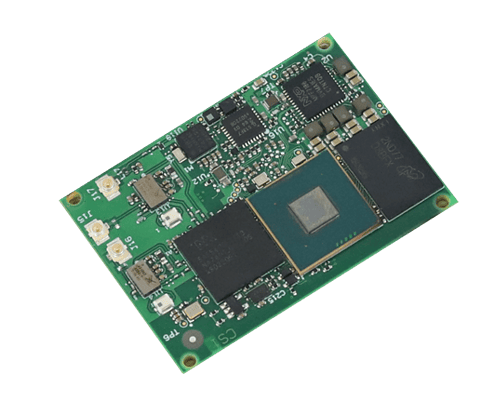

i.MX 8XLite System-on-Module

2 x Arm Cortex-A35, 1 x Cortex-M4F, 1.2GHz

  • Built-in V2X and V2I capabilities
  • Supports Ethernet, CAN, PCIe, and USB 2.0 for advanced communications
  • Small form factor and low power consumption
wdt_ID Feature Details
1 CPU NXP i.MX 8XLite Automotive grade 2x Arm® Cortex®-A35 @ Up to 1.2 GHz Industrial/Automotive 1x Cortex®-M4F
2 RAM 1 GB LPDDR4 with inline ECC, optional: 2 GB LPDDR4
3 eMMC 8 GB, optional: Up to 64 GB
4 Ethernet 1 RGMII (The ethernet switch and phy on the carrier board)
5 Wireless IEEEE802.11P, Single modem Dual antenna NXP SAF5400, GNSS U-blox M10, HSM NXP SFX1800- V2X security, IMU 9 axis, Pressure sensor (Altimeter)
6 GPU None
7 3D GPU Support None
8 USB 2X USB2.0
9 I/O Interfaces 2x UART, 2x I2C, 2x SPI, 1x PCIe, GPIO, PWM, 1x SD/MMC.
10 CAN 3x CAN FD
11 Display Interface None
12 Camera Interface None
13 B2B Connectors 2 x Hirose DF40 connectors MateAX RF connector 4 ports
14 External Storage Support SD, NVMe, PCIe-SSD
15 Supply Voltage 5V
16 I/O Voltage 3.3V / 1.8V
17 Power Consumption <5W
18 Temperature Industrial: -40°C to 85°C Industrial Extended: -40°C to 105°C
19 Product Longevity
20 Supported OS Embedded Linux
21 Form Factor Mezzanine, size 47 x 30 mm
wdt_ID Feature Details
1 CPU NXP i.MX 8XLite Automotive grade 2x Arm® Cortex®-A35 @ Up to 1.2 GHz Industrial/Automotive 1x Cortex®-M4F
2 RAM 1 GB LPDDR4 with inline ECC, optional: 2 GB LPDDR4
3 eMMC 8 GB, optional: Up to 64 GB
4 Ethernet 1 RGMII (The ethernet switch and phy on the carrier board)
5 Wireless IEEEE802.11P, Single modem Dual antenna NXP SAF5400, GNSS U-blox M10, HSM NXP SFX1800- V2X security, IMU 9 axis, Pressure sensor (Altimeter)
6 GPU None
7 3D GPU Support None
8 USB 2X USB2.0
9 I/O Interfaces 2x UART, 2x I2C, 2x SPI, 1x PCIe, GPIO, PWM, 1x SD/MMC.
10 CAN 3x CAN FD
11 Display Interface None
12 Camera Interface None
13 B2B Connectors 2 x Hirose DF40 connectors MateAX RF connector 4 ports
14 External Storage Support SD, NVMe, PCIe-SSD
15 Supply Voltage 5V
16 I/O Voltage 3.3V / 1.8V
17 Power Consumption <5W
18 Temperature Industrial: -40°C to 85°C Industrial Extended: -40°C to 105°C
19 Product Longevity
20 Supported OS Embedded Linux
21 Form Factor Mezzanine, size 47 x 30 mm

SolidRun’s i.MX 8XLite System-on-Module (SOM) provides OEMs and integrators with a powerful V2X vehicle communications platform

Based on Arm Cortex A35 technology, the NXP i.MX 8XLite system-on-module (SOM) provides fast, reliable, and secure V2X (vehicle-to-everything) networking.  The NXP i.MX 8XLite SOM is designed to enhance safety and security in a wide range of vehicle-oriented infrastructures and subsystems.  Available in 1- and 2-core configurations, the SOM features excellent real-time synchronization and control for a variety of industrial and smart-city applications.

The NXP i.MX 8XLite SOM features an array of high-speed interfaces – including Ethernet, PCIe Gen 3,  USB 2.0, and CAN-FD.  It is supported by the NXP longevity program, making it the optimal solution suited for advanced, vehicle-based communications applications.

See our other NXP i.MX8 Products.

  • Connecting Transportation Infrastructure

    The SolidRun NXP i.MX 8XLite system-on-module supports V2I (Vehicle-to-Infrastructure) transmissions between the vehicle and the road infrastructure, which is comprised of embedded Road Side Units (RSUs) that are equipped with V2I chipsets.  The RSUs control crucial “smart transport” devices, allowing emergency vehicles to safely run red lights when required, and alerting autonomous vehicles to road hazards in the immediate vicinity.

  • Cost-Optimized Flexibility

    The flexible SolidRun NXP i.MX 8XLite SOM’s is designed for cost-optimization, supporting reduced assembly options.  Contact your SolidRun representative for customization information.

  • DEVELOP YOUR V2X APPLICATIONS FAST

    The SolidRun provides a complete V2X hardware solution thanks to the optional carrier that provides a full set of wireless interfaces (Cellular, WiFi ac, Bluetooth) and the complete connectivity for vehicle or infrastructure systems on a single automotive connector. That allows OEM to focus on their application software and hardware integration for a short time to market.

  • UNRIVALED COMPACTNESS FOR A V2I/V2X SUBSYSTEM

    SolidRun V2X offers a full solution including ieee802.11p communication, security, GNSS, IMU, all driven by a powerful dual core 64 bits SoC. All that in only 55 x 30mm that makes it a perfect fit for any aftermarket solutions even with a very limited onboard space.

Related Articles

NXP Connect
cover NXP i.MX 8XLite
Reference Manuals

NXP i.MX8 XLite SOM Product Brief
NXP i.MX8 XLite SOM HW User Manual
Simplified Schematics (Rev 2.1)
Family Comparison Chart
Family Comparison Chart
Family Comparison Chart

Tools

Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
SolidRun Community Forums
SolidRun Community Forums
SolidRun Community Forums

Carrier Boards

HummingBoard i.MX8 XLite Product Brief
HummingBoard i.MX8 XLite QS Guide
HummingBoard i.MX8 XLite Schematics

HummingBoard-T AM64X Schematics
HummingBoard-T AM64X Schematics
HummingBoard-T AM64X Schematics

OS Support

Linux Board Support Package
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution

Linux – Distribution

Mechanical

DXF Files
3D Files
DXF Files
3D Files
DXF Files
DXF Files

HummingBoard imx8 XL Sideways Slider
HummingBoard i.MX 8XLite V2X Telematics
Processor
NXP i.MX 8XLite Dual core Arm Cortex A35 automotive with IEEE802.11P transceiver, security,
GNSS M10Q and IMU 9 axis
Memory & Storage
Up to 2GB DDR4
From 8GB eMMC
I/Os
All I/O on 50 pins automotive Molex connector:
– Power
– 1xUSB2.0
– Ethernet 100BT
– Ethernet T1
– 2xCAN-FD
– 2x GPIO IN on optocouplers
– 2x GPIO OUT on relay
Networking
1 x 100BASE-T1 Automotive Ethernet
1 x 100BASE-T
1 x 802.11 a/b/g/n/ac WiFi and Bluetooth5 (2.4/5 GHz) with
u-FL antenna connector
1 x Cellular 4G with fallback on 3G/2G with SIM holder.
2x u-FL antenna connectors
Misc.
Reset Button
RTC with battery
Power
7-36V with RP protection and power cranking management on Molex connector
Temperature
Industrial: -40°C to 85°C
Dimensions
PCBA: 60 x 78 mm
Enclosure
Contact Sales

Please use the template below to create the configuration you are interested in.

Since there are many options for each SOM configuration, it is not possible to keep all of them in stock. Because of this, SolidRun provides off-the-shelf configurations with high-runner part numbers, please visit our shop to review all of them.

Choose your IMX8XLite SOM configuration:

Part number structure
Fixed parameterCPU TypeDSRC ModemMemoryeMMCRevisionTemperatureFixed parameter
SR8XLXXWXXDXXG EXXXV10I0
Options for parameters
Fixed parameterCPU TypeDSRCMemoryeMMCRevisionTemperatureFixed parameter
SR8XLSO = i.MX 8XLite Solo
8XLDU = i.MX 8XLite Dual
W00 = No DSRC
W2X = Include DSRC
D01G = 1GB
D02G = 2GB
E000 = No eMMC
E008 = 8GB
E016 = 16GB
E032 = 32GB
E064 = 64GB
V10I = Industrial
A = Industrial Extended
0
