SolidWAN

Flexible and high performance Software Defined Networking solutions

SD-WAN & Security Edge Product Family

SolidRun provides system level solutions and reference designs that offers a wide range of SKUs to address SD-WAN and Security applications for deployment at Home Office, Branch Office, Enterprise, and Edge. For highest flexibility, the SolidRun solutions are based on SOM/COM from various Off-The-Shelf SoCs: NXP LX2 and Marvell Octeon.

The products family architecture is optimized for Software Defined implementations by leveraging direct connectivity of network interfaces to the CPU, which allows all network traffic to be managed by the SW for highest security, quality of service, allowing new services upgrades and updates. SolidRun SD-WAN products family offers wide range solutions addressing Commercial and Industrial grade temperature ranges for deployments at various Edge, Branch and Office locations.

multipleProducts 03
ClearfogBase.0002 5

ClearFog CN9130 Base

Features the successful ClearFog Base CN9130 and ClearFog Pro CN9130 platforms. Both form factors are widely used in networking and security applications in the embedded market. Based on the powerful Marvell OCTEON CN9130 processor the new platforms can migrate to 64 bit Arm architecture to develop new and robust applications with extensive processing power driving it.

SolidWAN CN9131

Features Marvell OCTEON CN9131 System on Chip (SoC). The SolidWAN CN9131 is the perfect solution for empowering IT professionals to optimize network performance, enhance security, and drive operational efficiency in small offices and branches.

SOLIDWAN CN9131
Iso no shadow.385

SolidWAN LX2162

SolidWAN LX2162A is complete hardware solution, based on NXP LX2162A processor populated on SolidRun SOM LX2162A, addressing Office/Branch SD-WAN solution with a wide array of wired and wireless WAN options for maximum site installation flexibility while maintaining a small desktop footprint and optimum price point.

SolidWAN Single LX2160

SolidWAN Single LX2160A is complete hardware solution, based on NXP LX2160A processor populated on SolidRun COM LX2160A, addressing Enterprise and Edge Data Centers SD-WAN solutions with a wide array of wired WAN options for maximum site installation flexibility while maintaining a 1U for factor and optimum price point.

SolidWAN Half no shadow.400 Rotate
SolidWAN Full no shadow.401 Rotate

SolidWAN Dual LX2160

SolidWAN Dual LX2160A is complete hardware solution, based on dual NXP LX2160A processor populated on dual SolidRun COM LX2160A, addressing Enterprise and Edge Data Centers SD-WAN solutions with a wide array of wired WAN options for maximum site installation flexibility while maintaining a 1U for factor and optimum price point.

Compare Main Features

ClearfogBase.0002 6
SOLIDWAN CN9131
Iso no shadow.385
SolidWAN Full no shadow.401 Rotate
ClearFog CN9130 BaseSolidWAN CN9131SolidWAN LX2162SolidWAN Single/Dual LX2160
Use CaseHome-OfficeSmall-OfficeBranch-OfficeEnterprise/Edge
CPUMarvell 4 x Arm Cortex A72 upto 2.2GHz
Marvell 4 x Arm Cortex A72 up to 2.2GHz
NXP 8-12-16x Arm Cortex A72 upto 2.0GHzDual NXP 16x Arm Cortex A72 upto 2.0GHz
RAM2GB (32bit DDR3)4GB – 8GB (4GB default)
2400MT/s (64bit DDR4) Option to support up to 64GB
Up to 32GB (64bit DDR4)Dual Up to 32GB (64bit DDR4)
Network2 x Ethernet RJ45 1GbE
1 x SFP 2.5GbE
2 x Port dedicated SFP+ 10GbE
4 x Port dedicated RJ45 1GbE
No PoE
8x Port dedicated Ethernet
2x SFP 10GbE
2x SFP 25GbE
12x Ports dedicated SFP 1GbE
12x Ports dedicated SFP+ 10GbE
2x Ports dedicated QSFP28 (100Gbps
Storage8GB eMMC, SPI 64Mbit, M.2 SATA8GB eMMC
8GB eMMC, MicroSD, M.2 / mSATADual 8GB eMMC, MicroSD, M.2 / mSATA
4G SIM supportMini Pcie with SIM holderM.2 Key-B with SIM holder (Key B) – LTE
M.2 Key-M 2280 (NVMe)
M.2 Key-B 2280 (SATA)
uSD (External)
2x USB 3.0
Mini Pcie with SIM holderN/A
Wifi supportmPCIe (WiFi AP mini-pcie module)
mPCIe (WiFi AP mini-pcie module)
mPCIe (WiFi AP mini-pcie module)N/A
AES Acceleration YesYesYesYes
Virtualization NoNoYesYes

Related Articles

SolidWAN CN9131
SolidWAN CN9131
SD WAN release 01B
SD WAN

ClearFog Base- Home Office

ClearFog Base offers many features in its small form factor, including support for dual LTE and dual SIM cards for extended connectivity, 2 x 1 GbE ports and SFP+ 10GbE cage, as well as USB 3.0 interface. The popular platform is a robust building block for companies which build applications such as wireless backhauling, enterprise security, quality of service measurements and much more.

  • ClearfogBase.0002 5
lock icon red line
Secure Access Service Edge (SASE)
wifi icon red line
LTE-WAN
edge gateway line icon
WAN Edge Gateway
wifi icon red line
Wi-Fi
CLEARFOG CN9130 BASE
I/Os1 x USB 3.0
Networking2 x Ethernet RJ45 10/100/1000
1 x SFP+ 10GbE
ProcessorMarvell OCTEON based CN9130 Quad core Arm Cortex A72 up to 2.2 GHz
Memory & StorageUp to 8GB DDR4
8GB eMMC
MicroSD
Misc.Indication LEDs
User Push Buttons
RTC Battery
Development and Debug interfacesMicro USB
Power9V-32V
Expansion card I/OsmikroBUS header
Mini PCIe with SIM holder
M.2
TemperatureCommercial: 0°C to 40°C
Industrial: -20°C to 65°C
DimensionsPCBA: 100 x 70mm
Enclosure : 120 x 80 x 30mm
EnclosureExtruded aluminum

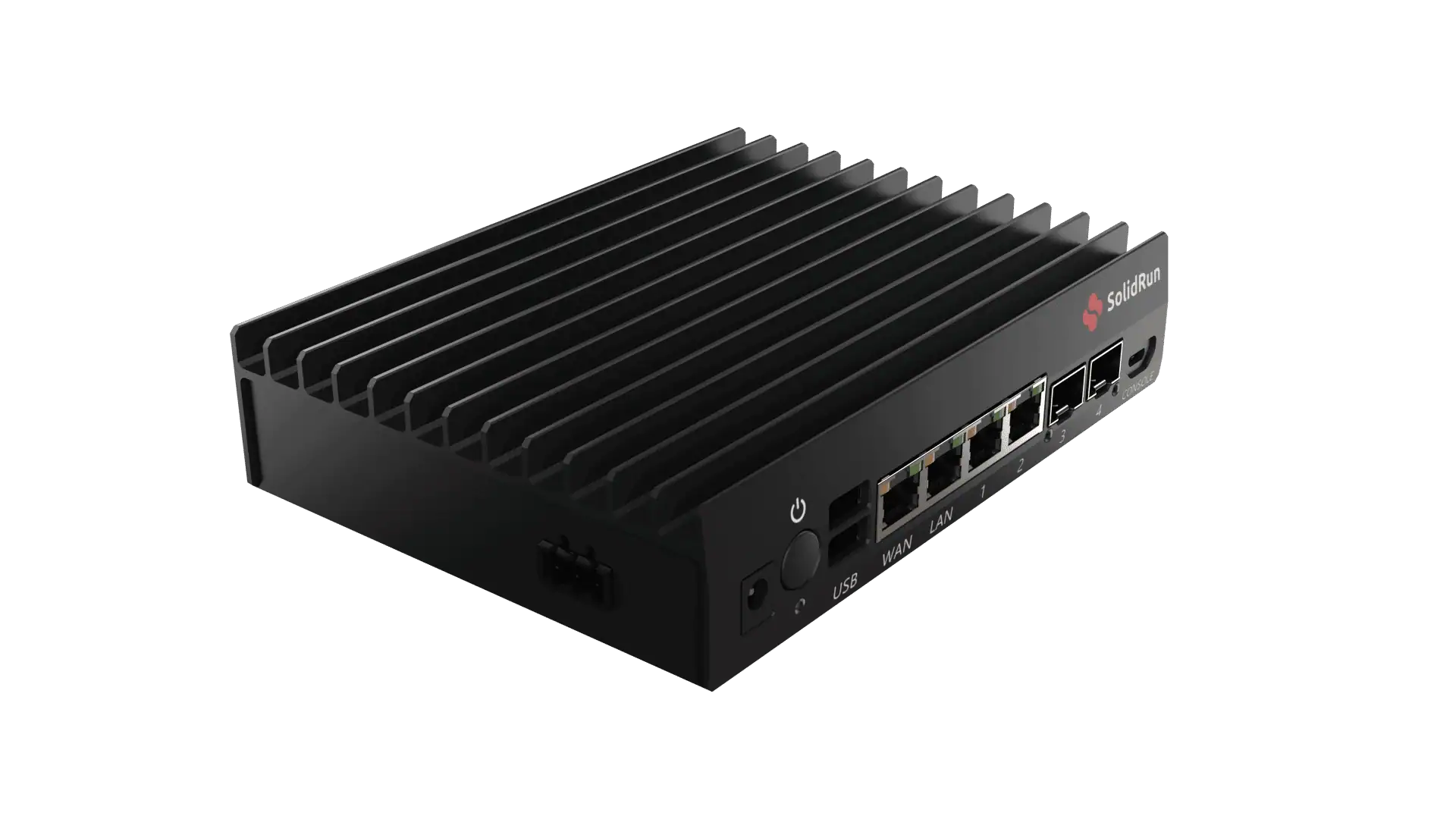

SolidWAN CN9131 – Small office

A compact and powerful small form factor SD-WAN appliance featuring the Marvell OCTEON CN9131 System on Chip (SoC). It boasts quad-core performance, robust networking capabilities, versatile connectivity options and compatibility with Linux-based software applications for software-defined networking. The SolidWAN CN9131 is an ideal solution for empowering IT professionals to optimize network performance, enhance security, and drive operational efficiency in small offices and branches.

  • SOLIDWAN CN9131
lock icon red line
Secure Access Service Edge (SASE)
wifi icon red line
LTE-WAN
edge gateway line icon
WAN Edge Gateway
wifi icon red line
Wi-Fi
SolidWAN CN9131
Networking2 x Port dedicated SFP+ 10GbE
4 x Port dedicated RJ45 1GbE
No PoE
ProcessorMarvell OCTEON based CN9131
4 x Arm Cortex A72 up to 2.2GHz
CN9130 SOM MCH on carrier (CP115) for CN9131
Memory & Storage4GB – 8GB (4GB default)
2400MT/s (64bit DDR4)
8GB eMMC
Option to support up to 64GB
Misc.RTC + Battery
Development and Debug interfacesMicro USB to UART
Power12V/3A DC Jack
Phoenix 9V-44V DC input
Expansion card I/OsmPCIe (WiFi AP mini-pcie module)
M.2 Key-B with SIM holder (Key B) – LTE
M.2 Key-M 2280 (NVMe)
M.2 Key-B 2280 (SATA)
uSD (External)
2x USB 3.0
Software SupportDPDK
VPP
For Reference / Demo only
TemperatureCommercial: 0°C to 40°C
Industrial: -20°C to 65°C
With frequency scaling enabled
DimensionsPCBA: 225 x 100mm
Enclosure : 255 x 105 x 35mm
EnclosureFanless conducting metal
(Optional DIN Rail)

SolidWAN LX2162

SolidWAN LX2162A is complete hardware solution, based on NXP LX2162A processor populated on SolidRun SOM LX2162A, addressing Office/Branch SD-WAN solution with a wide array of wired and wireless WAN options for maximum site installation flexibility while maintaining a small desktop footprint and optimum price point.

SolidWAN LX2162A supports multiple network interfaces: 2 x SFP28 ports (25GbE each), 2 x SFP+ ports (10GbE each), 8 x 1GbE copper (RJ45) for WAN/LAN connectivity. All ports are directly connected to the CPU for efficient Software processing making it ideal for Software Defined Networking solutions. In addition, the platform includes mPCIe for and mSIM for Wireless connectivity.

  • SolidWAN LX2162
lock icon red line
Secure Access Service Edge (SASE)
wifi icon red line
LTE-WAN
edge gateway line icon
WAN Edge Gateway
wifi icon red line
Wi-Fi
SolidWAN LX2162
I/Os1 x USB 3.0
Networking8x Port dedicated Ethernet
2x SFP 10GbE
2x SFP 25GbE
ProcessorNXP Layerscape LX2162A
16-core Arm Cortex A72 up to 2GHz
Memory & StorageUp to 32GB DDR4
8GB eMMC
MicroSD
Misc.USB to STM32 for remote management
RunBMC compliant socket
Development and Debug interfacesMini USB
JTAG
Power12V DC Jack ATX standard
Expansion card I/OsMini Pcie with SIM holder
mPCIe (WiFi AP mini-pcie module)
TemperatureCommercial: 0°C to 70°C
DimensionsEnclosure: 191 X 42 X 155 mm
EnclosureExtruded aluminum

SolidWAN Single LX2160

SolidWAN Single LX2160A is complete hardware solution, based on NXP LX2160A processor populated on SolidRun COM LX2160A, addressing Enterprise and Edge Data Centers SD-WAN solutions with a wide array of wired WAN options for maximum site installation flexibility while maintaining a 1U for factor and optimum price point.

SolidWAN Single LX2160A supports multiple network interfaces 8 x SFP+ ports (10GbE each), 8 x SFP ports (1GbE), and expendable OCP 3.0 NIC with additional 4x Ports SFP+ ports (10Gbps) for WAN/LAN connectivity. All ports are directly connected to the CPU for efficient Software processing making it ideal for Software Defined Networking solutions.

  • SolidWAN Half Exploded no shadow.408
  • SolidWAN Full Exploded no shadow.407

SolidWAN Dual LX2160

SolidWAN Dual LX2160A is complete hardware solution, based on dual NXP LX2160A processor populated on dual SolidRun COM LX2160A, addressing Enterprise and Edge Data Centers SD-WAN solutions with a wide array of wired WAN options for maximum site installation flexibility while maintaining a 1U for factor and optimum price point.

SolidWAN Dual LX2160A supports multiple network interfaces 12 x SFP+ ports (10GbE each), 12 x SFP ports (1GbE), and expendable OCP 3.0 NIC with 2x Ports SFP28 ports (100Gbps) for WAN/LAN connectivity. All ports are directly connected to the CPU for efficient Software processing making it ideal for Software Defined Networking solutions.

lock icon red line
Secure Access Service Edge (SASE)
wifi icon red line
Broadband Network Gateway (BNG)
Asset tracking icon
Security appliance
edge gateway line icon
WAN Edge gateway
single smaller
dual smaller 1
ComparisonSolidWan LX2160 SingleSolidWan LX2160 Dual
NICIntel OCP3 Quad 10GE (X710DA4)
MLNX OCP3 Dual 100GE (MCX623436AN)
RAMUp to 32GB (64bit DDR4)
Dual Up to 32GB (64bit DDR4)
NETWORK8x Ports dedicated Ethernet SFP 1GbE
8x Ports dedicated SFP+ 10GbE
4x Ports dedicated SFP+ 10Gbps (Intel NIC)
12x Ports dedicated Ethernet SFP 1GbE
12x Ports dedicated SFP+ 10GbE
2x Ports dedicated QSFP28 100Gbps (MLNX NIC)
Storage8GB eMMC, MicroSD, M.2 / mSATADual 8GB eMMC, MicroSD, M.2 / mSATA
4G SIM supportN/AN/A
Wifi supportN/AN/A
AES Acceleration YesYes
Virtualization YesYes
