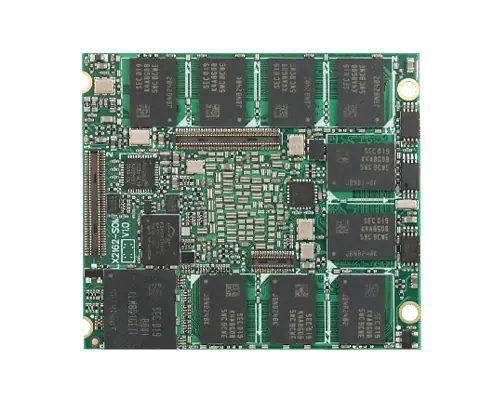

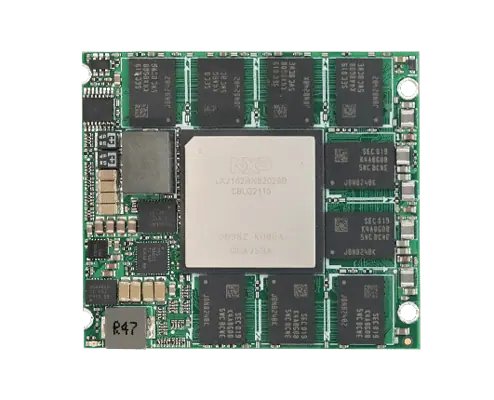

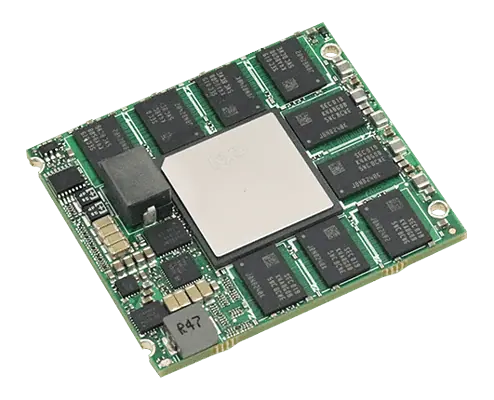

LX2-Lite System on Module

8/12/16 x Arm Cortex-A72, up to 2GHz

  • Up to 100GbE
  • Up to 16GB DDR2 with ECC
  • Ideal for space constrained designs at only 58 x 48 mm

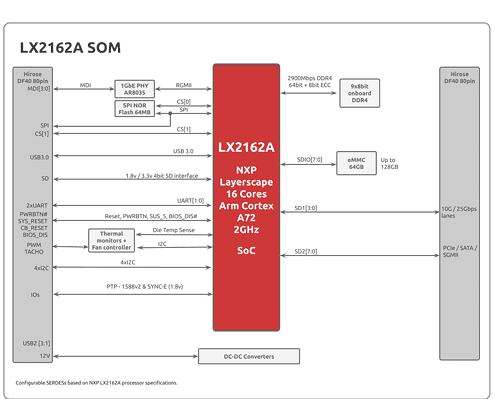

LX2162A SOM block diagram 2021

LX2 Lite SOM – Where Size Matters

SolidRun’s LX2-Lite System-on-Module is a high-performance and flexible platform intended to support dense and compact appliance designs at the network’s edge. Our ultra-compact SOM packs the power of an NXP LX2162A processor, boasting up to 16 Cortex A72 cores running at 2GHz and can be equipped with up to 16GB DDR2. As with all SolidRun SOMs, the LX2-Lite SOM packs onboard memory, eMMC storage, and power management in a compact form factor.

At just 58mm x 48mm, this is the smallest 16-core SOM platform in the world.

Typical applications for the LX2-Lite SOM include 5G base stations and packet processing, high-performance CPEs, storage controller, network security, and data routing. NXP’s LX2162A SoC is manufactured using a 16nm FinFET production process that allows for a reduced thermal footprint and optimized power/performance numbers to allow fanless designs.

  • Ultra Compact Design

    LX2-Lite SOM is only 58 x 48mm, which is only 25% of the equivalent COM Express type 7 LX2160A to allow for the smallest and most compact product designs.

  • A 12-Lane Data Superhighway

    Boasting 12 SERDES lanes, this SOM supports up to four 25Gbit/s ethernet connections (up to 100GbE), up to eight PCIe Gen 3 connections, as well as several combinations of the two for incredible application flexibility.

  • Hard-Core Processing Power

    Packing 16 Arm(r) v8 Cortex A72 cores and supporting up to 32GB of DDR4, the mighty Layerscape LX2162A processor delivers server-grade data processing performance!

  • Tiny in Form, Huge in Potential

    An excellent foundation for software-defined network hardware and Smart NICs capable of accelerating network functions, the LX2-Lite SOM can power an array of network- and edge-appliance applications.

nxp netwoking logo bar

Related Articles

Our Approach

To simplify development and deployment for our customers, SolidRun software R&D teams will provide:
– Optimized BSP.
– Stable long-term support for select distributions.
– Ongoing contributions to mainline projects and community initiatives.
All of our public source code is available at our GitHub page.

debianubentodpdk web
debianubentodpdk mobile

Where to Start?

SolidRun Developer Center is a knowledgebase platform that contains hundreds of articles covering topics like getting started, product documentation and reference designs, in-depth software articles, software development guidelines and much more. New articles are added on a weekly basis by our hardware and software engineers.

For more information about the LX2162A software section click here.

btn developerCenter 2

Always There for You

Our global technical support department will be happy to assist you, don’t hesitate to contact us!

LX2082A

LX2122A

LX2162A

CPU DetailsNXP Layerscape LX2082A
8 x Cortex A72
NXP Layerscape LX2122A
12 x Cortex A72
NXP Layerscape LX2162A
16 x Cortex A72
CPU Speed2.0GHz Commercial2.0GHz Commercial2.0GHz Commercial
RAMSingle channel
Up to 16GB DDR2*
Single channel
Up to 16GB DDR2*
Single channel
Up to 16GB DDR2*
Internal Storage8GB eMMC
8MB SPI
8GB eMMC
8MB SPI
8GB eMMC
8MB SPI
External Storage SupportSD
PCIe-SSD
SD
PCIe-SSD
SD
PCIe-SSD
Ethernet4 x 25 GbE or
1 x 100 GbE
4 x 10GbE w/ built in PHY
8 x 1GbE**
Sync-E, 1588-V2
4 x 25 GbE or
1 x 100 GbE
4 x 10GbE w/ built in PHY
8 x 1GbE**
Sync-E, 1588-V2
4 x 25 GbE or
1 x 100 GbE
4 x 10GbE w/ built in PHY
8 x 1GbE**
Sync-E, 1588-V2
USB 3.0111
PCIe8 (Gen 3.0 – 2 controllers)**8 (Gen 3.0 – 2 controllers)**8 (Gen 3.0 – 2 controllers)**
I2C444
UART222
GPIO
SATA4 (Gen 3.0)**4 (Gen 3.0)**4 (Gen 3.0)**
SD/MMC111
JTAG
OS SupportLinux
DPDK
UEFI
NXP Layerscape Secure Boot
Linux
DPDK
UEFI
NXP Layerscape Secure Boot
Linux
DPDK
UEFI
NXP Layerscape Secure Boot
Size55 x 48 mm55 x 48 mm55 x 48 mm
Interface3 x Hirose DF40 connectors3 x Hirose DF40 connectors3 x Hirose DF40 connectors
Main Voltage12V12V12V
I/O Voltage3.3V/1.8V3.3V/1.8V3.3V/1.8V
TemperatureCommercial: 0°C to 70°C
Commercial: 0°C to 70°C
Commercial: 0°C to 70°C
HumidityHumidity (non-condensing): 10% – 90%Humidity (non-condensing): 10% – 90%Humidity (non-condensing): 10% – 90%

(*) Contact us for Dual channel 64GB DDR4 support.
(**) Configurable SD2 SERDESs based on NXP LX2162A processor specifications.

LX2162 Clearfog side with add ons no shadow 1

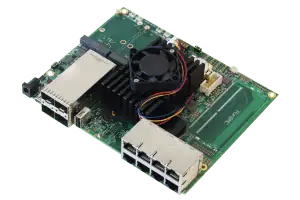

ClearFog LX2-LiteClearFog LX2 Lite SBC
I/Os1 x USB 3.0

Networking2 x SFP28 ports (25GbE each)
2 x SFP+ ports (10GbE each)
8 x 1GbE copper (RJ45)
ProcessorNXP Layerscape LX2162A 16-core Arm Cortex A72 up to 2GHz
Memory & StorageUp to 16GB DDR2
8GB eMMC
MicroSD
Misc.USB to STM32 for remote management
RunBMC compliant socket
Development and Debug interfacesMini USB
JTAG
Power12V DC Jack
ATX standard
TemperatureCommercial: 0°C to 70°C

DimensionsPCBA: 170 x 137mm
EnclosureOptional
Fan LX2162A

LX2- Lite Fan

Fits the LX2162A SOMs

LX2162A heatsink 80x80 1

LX2- Lite Heatsink

Fits the LX2162A SOMs
