HoneyComb Ryzen R8000

Name: HoneyComb Ryzen R8000
Brand: SolidRun

The HoneyComb Ryzen R8000 Mini-ITX Board is a powerhouse in a compact form.
Built for performance and reliability, it pairs AMD Ryzen R8000 CoM Express Type 6 Compact compute modules serving as fully deployable evaluation platform for our CEX6 Compact R8000 series modules. With dual 2.5GbE networking and up to 4x displays combined with powerful GPU and NPU for AI Inferencing, it’s ready to tackle modern industrial challenges in extreme conditions from -40°C to 85°C. Whether scaling applications or powering demanding tasks, this board delivers big capabilities in a small footprint.

Request A Quote Contact Sales

Overview Specification Documentation Order Options

HoneyComb R800 AMD Ryzen CoM6 (with Heatsink and fan)

All On One Board

The HoneyComb Ryzen R8000 is a Mini-ITX motherboard based on AMD Ryzen™ Embedded R8000 CoM6 Compact. Leveraging exceptional performance of the Ryzen R8000 CPU with Up to 8 Zen 4 cores/ 16 threads.
Integrated Radeon RDNA3 graphics (up to 6 WGPs), AMD XDNA NPU with up to 16 TOPS AI inferencing, Total processor performance scaling up to 39 TOPS.

Connectivity Options, Industrial Grade and Low Power

The HoneyComb Ryzen™ R8000 board enable HMIs and Vision AI and OEMs to flexibly scale their product portfolios across multiple performance and price points to meet their customers’ unique needs. Its connectivity capabilities include dual 2.5 GbE tu support modern industrial demands for reliable high speed networking to enable high speed sensors integration.

Use Cases

Industrial Automation & Control: High-performance processing and real-time I/O for PLCs, HMIs, and robotics.
Medical Imaging & Diagnostics: Advanced graphics and AI capabilities for visualization and analysis.
Edge AI & Machine Vision: Integrated NPU and GPU for inferencing at the edge with minimal latency.
Transportation & Smart Infrastructure: Compact, rugged design suited for embedded systems in harsh environments.
Digital Signage & Gaming: Multi-display support and high-end graphics for immersive experiences.

Industrial Automation & Control: High-performance processing and real-time I/O for PLCs, HMIs, and robotics.
Medical Imaging & Diagnostics: Advanced graphics and AI capabilities for visualization and analysis.
Edge AI & Machine Vision: Integrated NPU and GPU for inferencing at the edge with minimal latency.
Transportation & Smart Infrastructure: Compact, rugged design suited for embedded systems in harsh environments.
Digital Signage & Gaming: Multi-display support and high-end graphics for immersive experiences.

	HoneyComb Ryzen R8000
Processor	COM 6 Compact Ryzen R8840U
Memory & Storage	1x M.2 NVME GEN 4×4 2x SATA 3.0 (Additional M.2 NVME 2x Gen4 on COM)
I/Os	1x USB 3.2 (10Gbps) and 3x USB 3.0 combined into 2x Dual USB connectors
Networking	2x RJ45 2.5Gb NICs (one from COM and second on board)
Display	1x eDP 50 pin 2x mini DisplayPort 1x HDMI 2.0
Misc.	1x 4pin header with PWM and TACH 2x 4pin header ONLY 12v Standard ATX PWR/LED header CR2032 battery socket 2x USB 2.0 headers COM GPI/GPO GPIO header
Development and Debug interfaces	Micro USB connector to FTDI for COM console
Power	Standard ATX connector
Expansion card I/Os	x16 PCIe connector with 8 active lanes. Can be configured as 1×8 PCIe or 2×4 PCIe gen 4
Temperature	Commercial: 0°C to 70°C
Dimensions	Standard mini ITX 170 x 170mm

Reference Manuals

HoneyComb Ryzen R8000 Product Brief

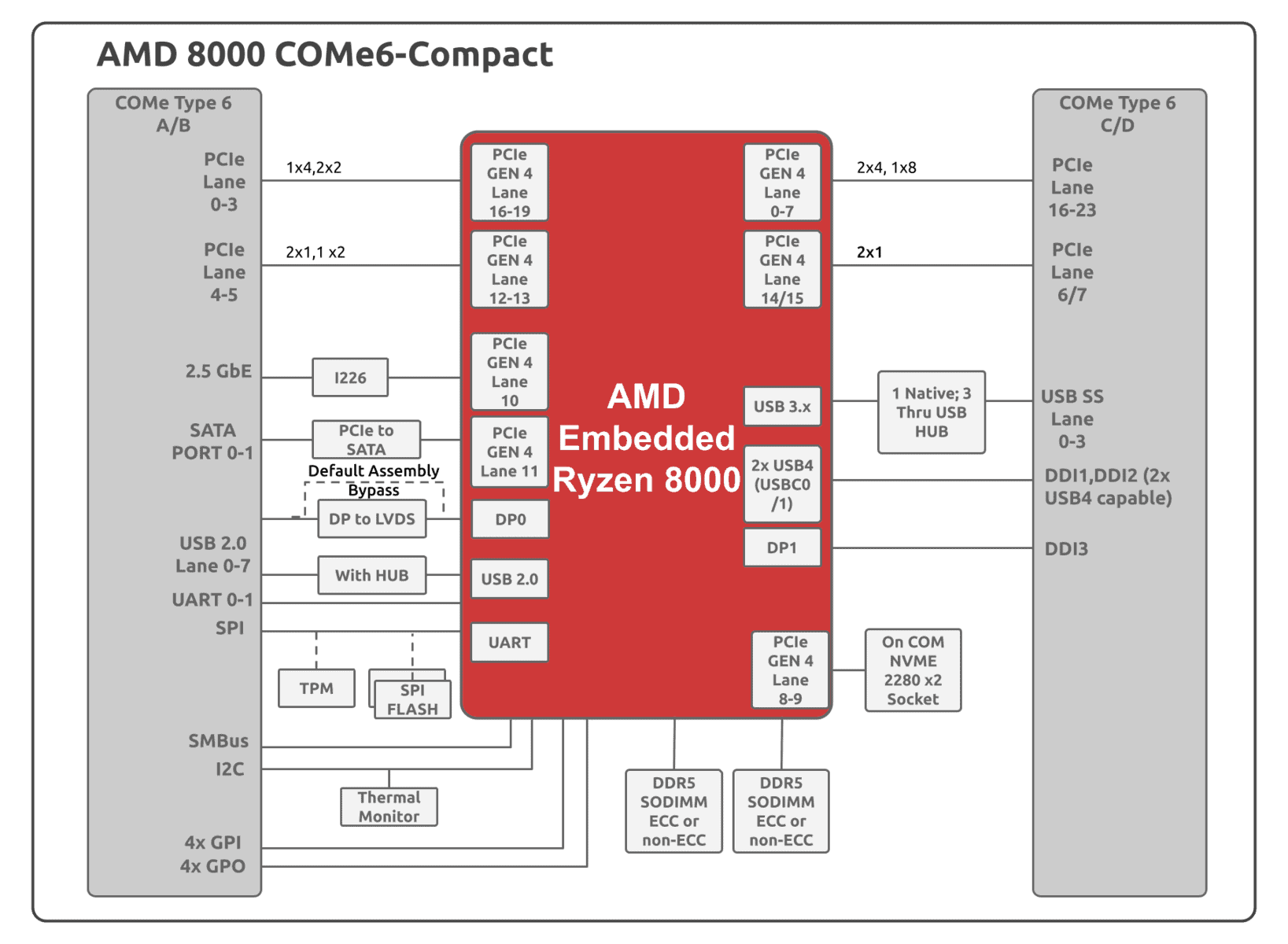

HoneyComb Ryzen R8000 Block Diagram
HoneyComb Ryzen R8000 Quick Start Guide
HoneyComb Ryzen R8000 Schematics
Family Comparison Chart

Tools

SolidRun Community Forums
Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
Pinout Planner Tool
Pinout Planner Tool

Platform Highlights

• Industry standard form factor CoM6 and mini-ITX
• x.86 architecture
• Industrial Grade, 10 year longevity
• Power Efficient
detection
detection

OS Support

SW Support Package
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution

Mechanical

DXF Files
3D Files
DXF Files
3D Files
DXF Files
DXF Files

Product Compliance

REACH
RoHS
ISO 9001
EMC/EMI Regulations
UL 94
Green/ Halogen Free

Please use the template below to create the configuration you are interested in. Since there are many options for each SOM configuration it is not possible to keep all of them in stock, for this purpose SolidRun provides off the shelf configurations with high runner part numbers, please visit our shop to review all of them.

Get a Quote

Choose your HoneyComb Ryzen R8000 configuration:

Part number structure
Fixed parameter	CPU Type	SPI	Memory	eMMC	Revision	Temperature	Heatsink
SR	AMD Ryzen R88XXX	SXX	DXXX	EXXX	VXX	X	X

Options for parameters
Fixed parameter	CPU Type	SPI	Memory	eMMC	Revision	Temperature	Heatsink
SR	CR840 = AMD Ryzen R8840U	S01 = 48MB	D00G = No DDR	E000 = No eMMC	V10	C= Commercial I = Industrial	0 = No Heatsink H = Heatsink
