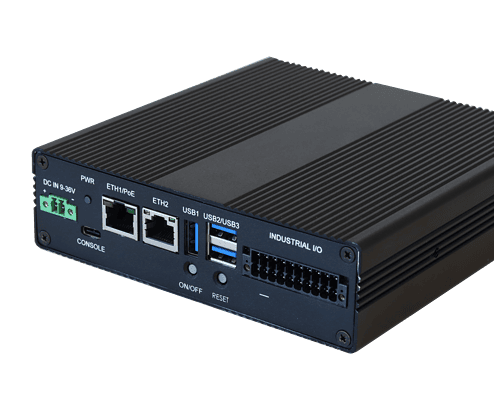

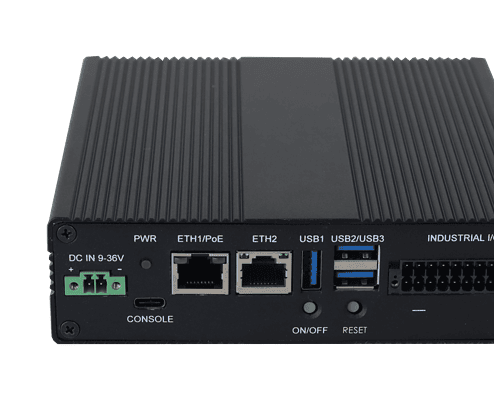

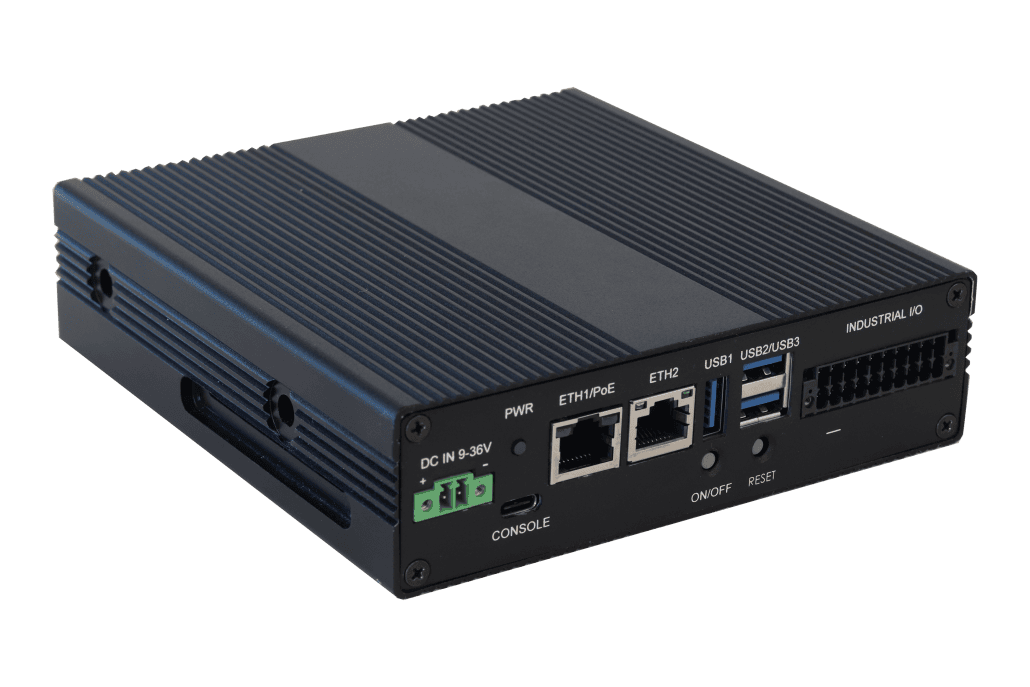

IIOT – 200 – 8M Gateway

Name: IIOT – 200 – 8M Gateway
Brand: SolidRun

Based on NXP i.MX8M Plus Quad-core A53 up to 1.8 GHz, the IIOT-200-8M Gateway supports multiple industrial protocols, including RS232, RS485, CAN-FD, and 1Gb Ethernet, with flexible power options including a wide power range and PoE.
This gateway supports multiple M.2 cards for LTE connectivity with M.2 B-key, including dual SIM, and M.2 M-key for NVMe storage and various AI accelerators.
With additional addon card options for expanded features, this platform is highly scalable and upgradeable, making it adaptable to meet a wide range of requirements.

Request A Quote Buy Now

Specification Documentation Order Options

	IIOT-200-8M
I/Os	2x RS232, 2x RS485, or RS232 + RS485 2 x CAN-FD 1 x USB3.0 (OTG) 2 x USB3.0 ( Host) 2x MIPI-CSI 4 lanes (1 MIPI-CSI on the SoM, 2 on the carrier)
Networking	2 x Ethernet RJ45 10/100/1000 1 x 802.11 a/b/g/n/ac WiFi and Bluetooth (2.4/5 GHz)
Processor	NXP i.MX 8M Plus Quad core ARM Cortex A53 Up to 1.8GHz
Memory & Storage	8GB LPDDR4 32GB eMMC MicroSD
Display	Not available on the IIoT gateway The Evaluation kit comes with 7” touch display LVDS/Mipi-DSI
Misc.	TPM2.0 GPIO RTC EEPROM
Power	9V – 32V PoE sink support 802.3at Reverse polarity support
Expansion card I/Os	M.2 B-Key LTE modem (eSIM, NanoSim) M.2 M-Key – NVMe or AI accelerator Additional addon cards are supported* * Contact Sales
Temperature	Industrial: -40°C to 85°C
Dimensions	150 X 145 X 40mm
Enclosure	Extruded aluminum
	Buy Now

Reference Manuals

IIOT-200-8M Product Brief
IIOT-200-8M Block Diagram
IIOT-200-8M Quick Start Guide
Family Comparison Chart
Family Comparison Chart
Family Comparison Chart

Tools

SolidRun Community Forums
Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
Pinout Planner Tool
Pinout Planner Tool

Applications

• Smart Solutions
• Asset Tracking and Management
• Remote Monitoring and Control
detection
detection
detection

OS Support

Linux Board Support Package
Yocto Board Support Package
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution

Mechanical

3D File
DXF Files
DXF Files
DXF Files
DXF Files
DXF Files

Product Compliance

REACH
RoHS
ISO 9001
EMC/EMI Regulations
UL 94
Green/ Halogen Free

Please use the template below to create the configuration you are interested in. Since there are many options for each SOM configuration it is not possible to keep all of them in stock, for this purpose SolidRun provides off the shelf configurations with high runner part numbers, please visit our shop to review all of them.

Get a Quote

Choose your IIOT-200-8M Gateway Configuration:

Part number structure
Fixed parameter	CPU Type	Cores option	WiFi/BT	Memory	eMMC	Carrier Board	Revision	Temperature	Enclosure
SR	MXX	XX	WXX	DXXX	EXXX	X	XX	C	E

Options for parameters
Fixed parameter	CPU Type	Cores option	WiFi/BT	Memory	eMMC	Temperature	Enclosure
SR	MP8 = i.MX8M Plus	For i.MX8: QD = Quad	For i.MX8: W00 = Without WiFi/BT WB1 = Include WiFi/BT	For i.MX8: D01G = 1GB D02G = 2GB D03G = 3GB D04G = 4GB D08G = 8GB	E000 = No eMMC E008 = 8GB E016 = 16GB E032 = 32GB E064 = 64GB E128 = 128GB	I = Industrial	E = Enclosure
