NXP Layerscape LX2162A Based Single Board Computer
ClearFog LX2-Lite Developer Platform. This platform offers the perfect foundation for creating high performance SD-WAN, network security, and industrial control solutions, and boasts a solid mix of high-performance networking, PCIe, USB and SATA connections, to satisfy a variety of hardware applications.
| ClearFog LX2-Lite | |
|---|---|
| I/Os | 1 x USB 3.0 |
| Networking | 2 x SFP28 ports (25GbE each) 2 x SFP+ ports (10GbE each) 8 x 1GbE copper (RJ45) |
| Processor | NXP Layerscape LX2162A 16-core Arm Cortex A72 up to 2GHz |
| Misc. | USB to STM32 for remote management RunBMC compliant socket |
| Memory & Storage | Up to 16GB DDR4 8GB eMMC MicroSD |
| Development and Debug interfaces | Mini USB JTAG |
| Power | 12V DC Jack ATX standard |
| Temperature | Commercial: 0°C to 70°C |
| Dimensions | PCBA: 170 x 137mm |
| Enclosure | Optional |
ClearFog LX2162A Product Brief

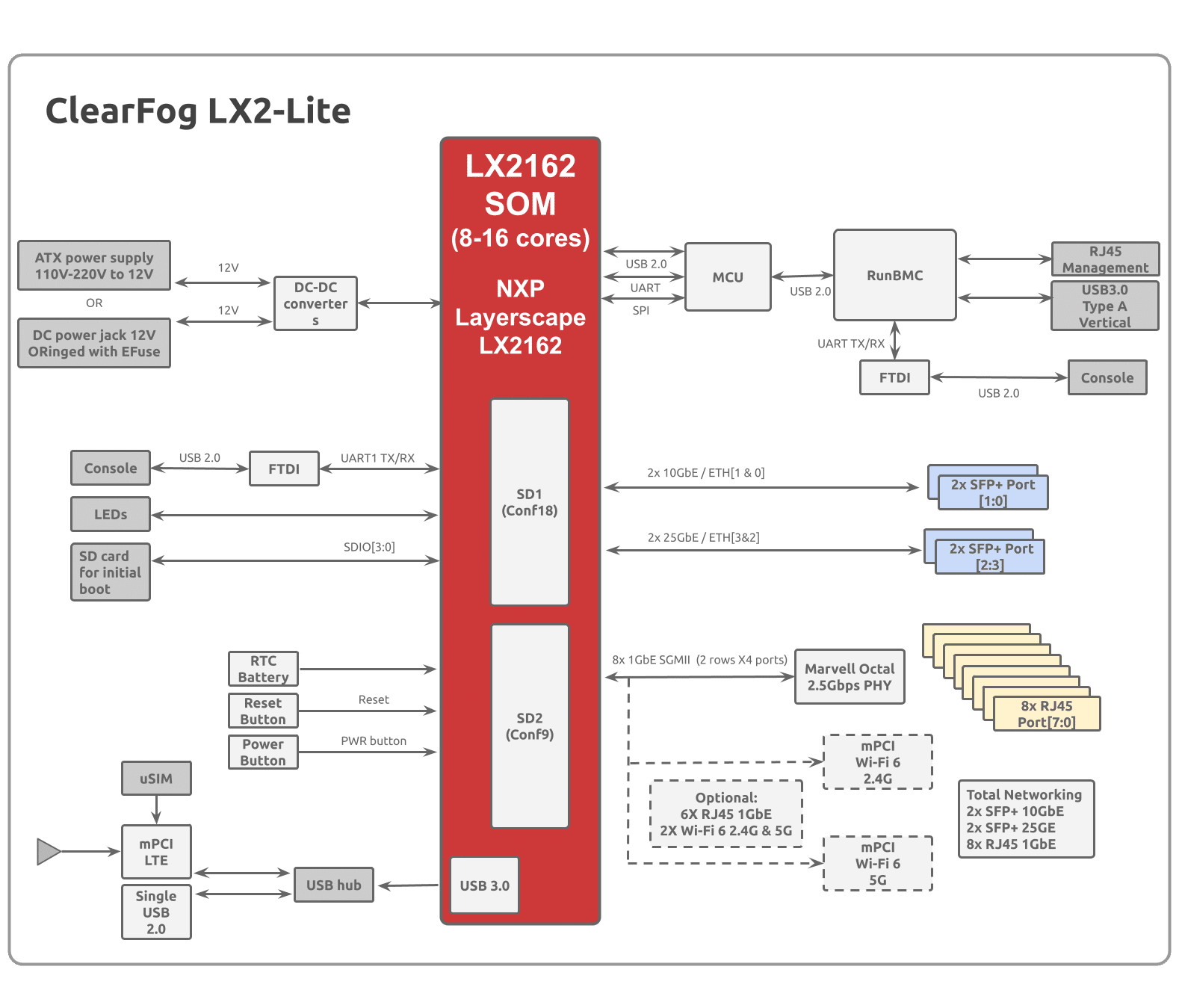

ClearFog LX2162A Block Diagram
ClearFog LX2162A Quick Start Guide
Carrier Schematics Orcad
Simplified Schematics
Simplified Schematics
SolidRun Community Forums
Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
Pinout Planner Tool
• Ideal for SD-WAN, network security, and industrial control
• Robust Connectivity Options
• hardware applications
detection
detection
Board Support Package
Debian Board Support Package
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution
Power Adapter / Micro SD / Heatsink
12V, 5A US Power Adapter
For the Clearfog families
12V, 5A EU Power Adapter
For the Clearfog families
Micro SD 16GB
Blank SanDisk Class 10 Micro SD 16GB
Lx2-Lite Fan
Fits the Lx2-Lite SOMs
Please use the template below to create the configuration you are interested in. Since there are many options for each SOM configuration it is not possible to keep all of them in stock, for this purpose SolidRun provides off the shelf configurations with high runner part numbers, please visit our shop to review all of them.
| Fixed parameter | CPU Type | SPI | Memory | eMMC | Carrier Board | Revision | Temperature | Heatsink |
| SR | X2162 | S00 | DXXX | EXXX | X | 00 | X | X |
| Fixed parameter | CPU Type | SPI | Memory | eMMC | Carrier Board | Revision | Temperature | Heatsink |
| SR | X2162 = LX2162A X2122 = LX2122A X2082 = LX2082 | S00 = 64MB | D08G = 8GB D16G = 16GB D32 = 32GB | E000 = No eMMC E008 = 8GB E064 = 64GB | C = ClearFog LX2162A | 00 | C = Commercial | H = Heatsink |
