Up to 4 x Arm Cortex-A9 cores

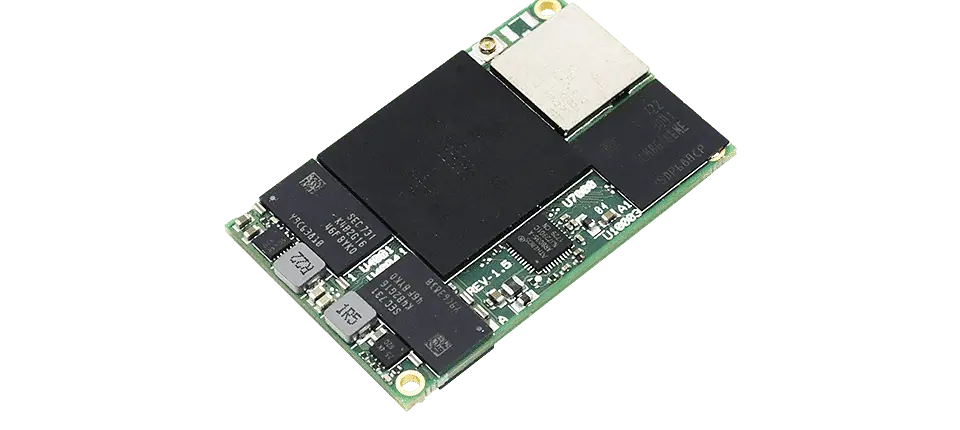

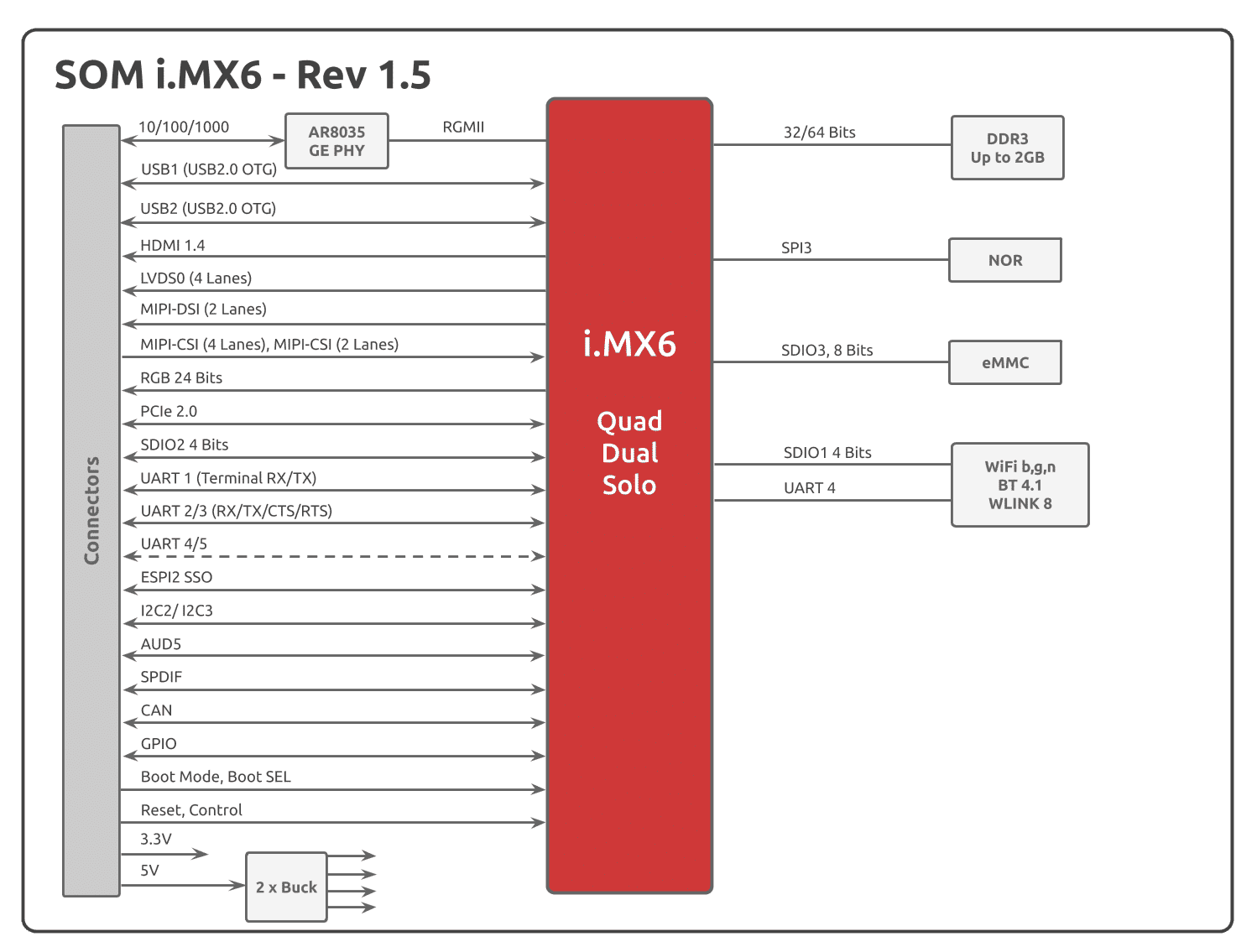

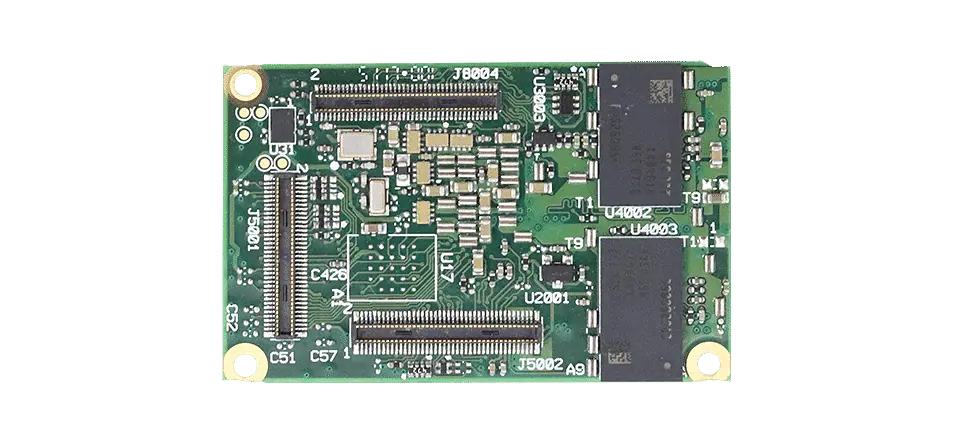

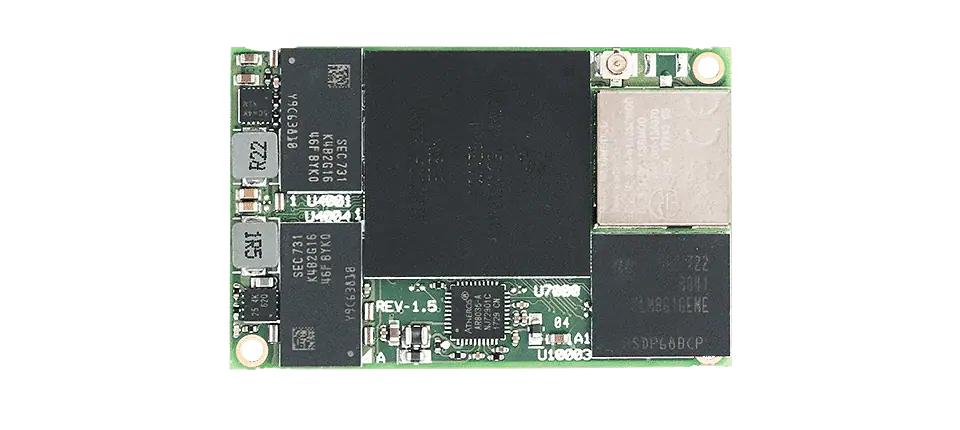

Embedded system product developers and device makers and OEMs can now drastically shorten their development cycle and reduce time to market, with SolidRun’s System on a Module (SOM) family. We’ve packed an NXP i.MX 6 SoC (System-on-Chip), memory subsystem, power management subsystem, networking and system interconnectivity into a single ultra-compact system on module ARM board.

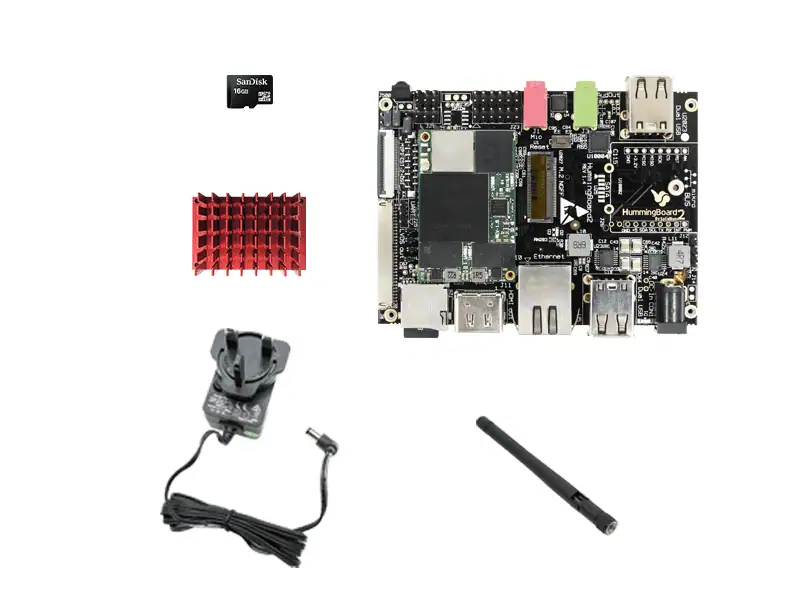

To make it easier for you, we’ve created evaluation kit that can serve as a complete development platform for both evaluation and application development purposes.
