ClearFog CX LX2

16-core Arm Cortex A72, up to 2GHz

NXP Layerscape LX2160A
COM Express type 7 module and Mini ITX carrier board
Dual DDR4 SO-DIMM 2900MT/s
64GB eMMC
Commercial: 0° C to 70° C
OS: Linux

Overview Specifications Documentation Accessories Order Options

Harness The Full Potential of Network Computing

ClearFog CX Lx2K is a robust embedded Mini ITX platform designed for the COM Express type 7 form factor – offering a flexible and feature-rich carrier for a range of COM Express type 7 modules.

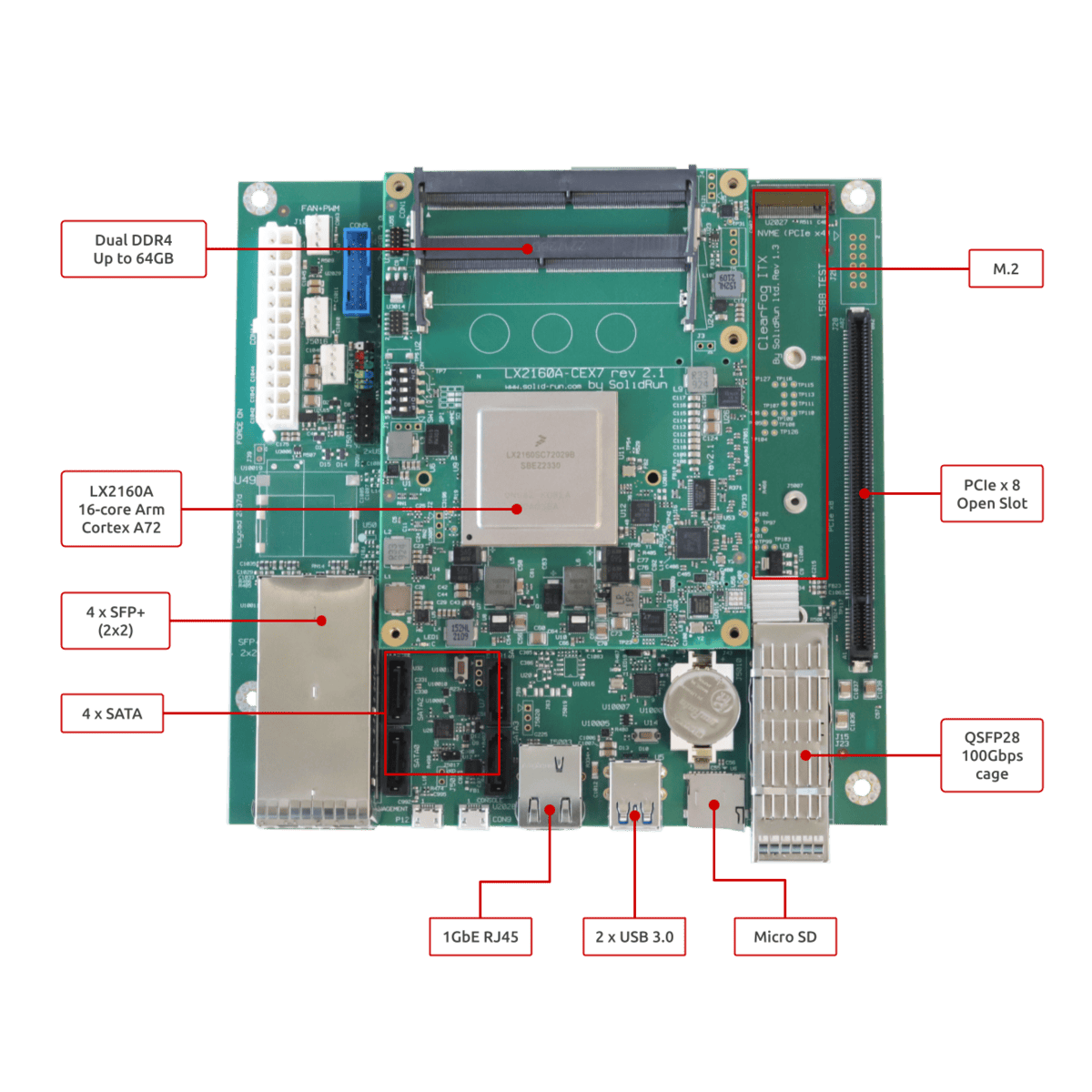

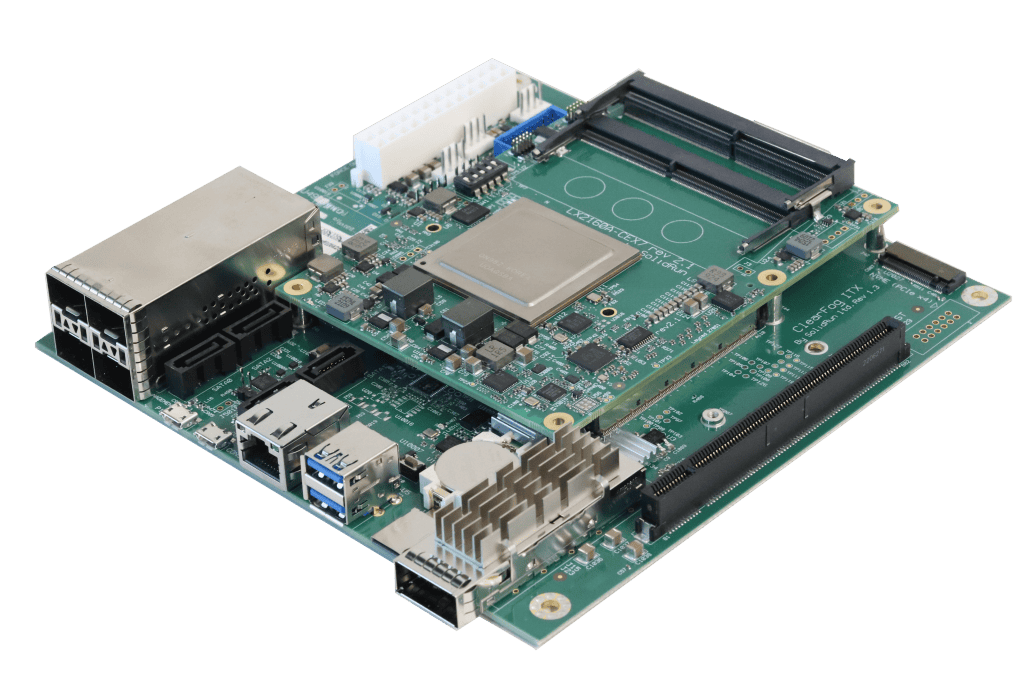

This carrier board features an array of 4 x 10GbE SFP+ (2×2) connectors, QSFP28 100GbE cage and 1 x 1GbE RJ45 port. Other features include 3 x USB 3.0 and 3 x USB 2.0 port, PCIe x8 (open port), 4 x SATA, up to 64GB DDR4 memory (not included by default), eMMC, optional M.2, microSD, and GPIO header.

All On One Board

ClearFog CX LX2K is a high-performance Mini ITX carrier platform for COM Express Type 7 form factor, designed for networking, embedded applications, and edge computing, enabling flexible integration and scalable deployments at the edge.

Push the limits of the edge with ClearFog CX LX2K – built on NXP’s Layerscape LX2K architecture, delivering powerful Arm processing, rich connectivity, and optimized performance for advanced networking workload

	ClearFog CX LX2
Processor	NXP Layerscape LX2160A 16-core Arm Cortex A72 up to 2GHz
Memory & Storage	Up to 64GB DDR4 DIMM 64GB eMMC MicroSD 4 x SATA 3.0
I/Os	3 x USB 3.0 3 x USB 2.0
Networking	1 x QSFP port 100GbE 4 x SFP+ ports (10GbE each) 1 x 1GbE copper (RJ45)
Misc.	USB to STM32 for remote management
Development and Debug interfaces	Micro USB JTAG
Power	ATX standard
Expansion card I/Os	1 x PCIe x8 Gen 3.0, open slot (can support x16) 1 x M.2
Temperature	Commercial: 0°C to 70°C
Dimensions	PCBA: 170 x 170mm
