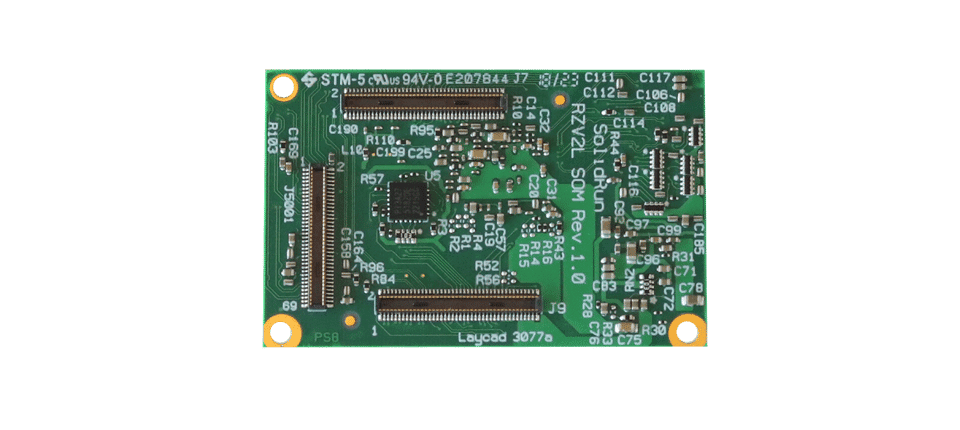

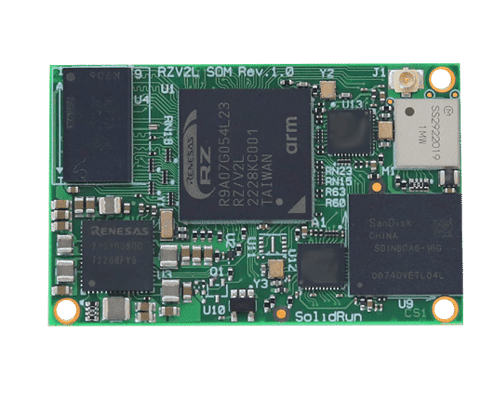

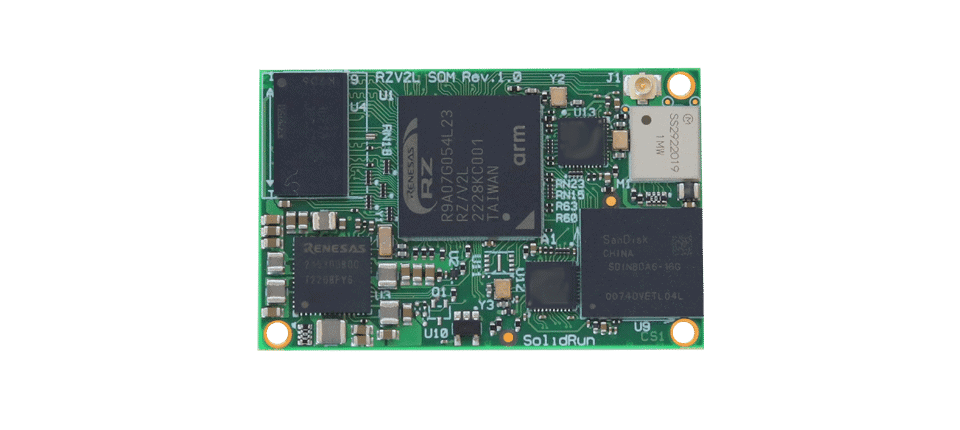

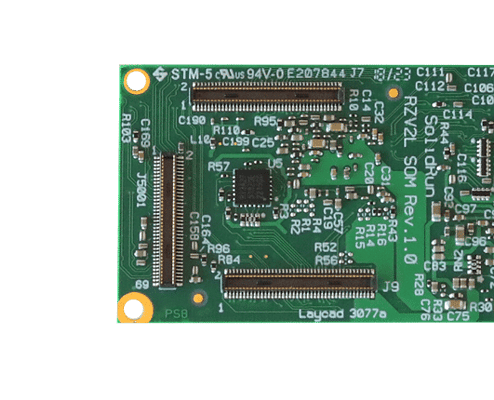

RZ/V2L System on Module

Up to 2 x Arm Cortex-A55, 1 x Cortex-M33

  • Dual core Arm Cortex A55 up to 1.2GHz + Cortex M33
  • Onboard Certified Dual Band WiFi 802.11 a/b/g/n/ac with Bluetooth 5.0
  • Built-in DRP-AI accelerator
  • Pin to Pin compatible with RZ/G2L application processor
  • The CIP (Civil Infrastructure Platform) Linux ensures robust, sustainable infrastructural systems
wdt_ID Feature Details
1 CPU Renesas RZ/V2L 2x Arm® Cortex®-A55 @ Up to 1.2 GHz 1x Cortex®-M33 DRP-AI accelerator
2 RAM Default: 2 GB DDR4, Up to 2 GB DDR4
3 eMMC Default: 16 GB, Up to 64 GB.
4 Ethernet Up to 2 X 10/100/1000 Mbps phy on board
5 Wireless 802.11 b/g/n/ac + BT 5.0
6 GPU Arm Mali-G31
7 3D GPU Support OpenGL ES1.1 / 2.0 / 3.0 / 3.1 and 3.2 Supported OpenCL 2.0 Full Profile Supported
8 USB 2X USB2.0
9 I/O Interfaces 3x UART, 3x I2C, 2x SPI, GPIO, PWM, 2x SD/MMC
10 CAN 2x CAN FD
11 Display Interface 1x MIPI DSI, LVDS, RGB
12 Camera Interface 1x MIPI CSI-2 support 5MP, 30 fps
13 B2B Connectors 3x Hirose DF40 connectors
14 External Storage Support SD
15 Supply Voltage 5V
16 I/O Voltage 3.3V
17 Power Consumption <5W
18 Temperature Commercial: 0°C to 70°C Industrial: -40°C to 85°C
19 Product Longevity 2032
20 Supported OS Embedded Linux (Yocto/Debian Distribution)
21 Form Factor Mezzanine, size 47 x 30 mm
wdt_ID Feature Details
1 CPU Renesas RZ/V2L 2x Arm® Cortex®-A55 @ Up to 1.2 GHz 1x Cortex®-M33 DRP-AI accelerator
2 RAM Default: 2 GB DDR4, Up to 2 GB DDR4
3 eMMC Default: 16 GB, Up to 64 GB.
4 Ethernet Up to 2 X 10/100/1000 Mbps phy on board
5 Wireless 802.11 b/g/n/ac + BT 5.0
6 GPU Arm Mali-G31
7 3D GPU Support OpenGL ES1.1 / 2.0 / 3.0 / 3.1 and 3.2 Supported OpenCL 2.0 Full Profile Supported
8 USB 2X USB2.0
9 I/O Interfaces 3x UART, 3x I2C, 2x SPI, GPIO, PWM, 2x SD/MMC
10 CAN 2x CAN FD
11 Display Interface 1x MIPI DSI, LVDS, RGB
12 Camera Interface 1x MIPI CSI-2 support 5MP, 30 fps
13 B2B Connectors 3x Hirose DF40 connectors
14 External Storage Support SD
15 Supply Voltage 5V
16 I/O Voltage 3.3V
17 Power Consumption <5W
18 Temperature Commercial: 0°C to 70°C Industrial: -40°C to 85°C
19 Product Longevity 2032
20 Supported OS Embedded Linux (Yocto/Debian Distribution)
21 Form Factor Mezzanine, size 47 x 30 mm

Related Articles

CIP The Civil Infrastracture Platform blog
RZ G2UL 2
Rz 01
Tools

Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
Pinout Planner Tool

Carrier Boards

HummingBoard Pro Product Brief
HummingBoard Pro Quick Start Guide
HummingBoard Pro Schematics (Rev. 1.0)

HummingBoard Ripple Schematics (Rev 2.5)
HummingBoard Ripple Schematics (Rev 2.5)
HummingBoard Ripple Schematics (Rev 2.5)

OS Support

Linux – Distribution (GitHub)
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution

Linux – Distribution

Mechanical

DXF Files
3D Files
DXF Files
3D Files
DXF Files
DXF Files

HUMMINGBOARD PRO
Processor
Renesas RZ/V2L
Memory & Storage
Up to 8GB LPDDR4
8GB eMMC
MicroSD
Display
HDMI
I/Os
2 x USB 3.0
1 x MIPI-CSI
1 x Digital audio (Riser interface FPC connector)
1 x Onboard audio codec
Networking
2 x Ethernet RJ45 10/100/1000
1 x 802.11 a/b/g/n/ac WiFi and Bluetooth (2.4/5 GHz)
Misc.
1 x Reset button
1 x Configurable push button
3 x LED indicators
RTC
Development and Debug interfaces
Micro USB
Power
7V – 36V
PoE sink support 802.3af Class 0
Expansion card I/Os
M.2 mPCIe – optional to connect with Hailo-8(for i.MX8M Plus)+E5 or nVME via PCIe interface
Mini Pcie with SIM holder
Temperature
Commercial: 0°C to 70°C
Industrial: -40°C to 85°C
Dimensions
PCBA: 100 x 70mm
Enclosure : 120 x 80 x 30mm
Enclosure
Extruded aluminum
RZV2L EV Kit
RZ/V2L- Evaluation Kit
System on Modules (SoM)
Renesas RZ/V2L, 1.2 GHz, Cortex A-55 + Cortex M-33
2GB RAM, 16GB eMMC
2x GbE
Wi-Fi 802.11 b/g/n/ac
Bluetooth 5.0
-40 to 85°C
Included Carrier Board
HummingBoard Pro
Micro SD
SanDisk Memory Cards 16GB SDSDQAD-016G
Antenna WiFi/ BT
RF ANT 2.4GHZ/5.4GHZ FLAT PATCH
Heatsink
Heatsink for G2L SOM
Universal Power adapter
12V/1A Power adapter with 4 plugs
Micro USB Cable
USB to Micro USB Cable
LTE Modem (Optional)
Quectel EC25A – LTE Cat 4 US / Quectel EC25E – LTE Cat 4 EU
Touch Screen (Optional)
5″ HDMI / 7″ HDMI +
5V/3A Power adapter with 4 plugs +
USB to Micro USB Cable
MIPI CSI Camera (Optional)
Basler daA3840-30mc camera with Lens and Cable

Please use the template below to create the configuration you are interested in.

Since there are many options for each SOM configuration, it is not possible to keep all of them in stock. Because of this, SolidRun provides off-the-shelf configurations with high-runner part numbers, please visit our shop to review all of them.

Choose your RZ/V2L configuration:

Part number structure
Fixed parameterCPU TypeWiFi/BTMemoryeMMCRevisionTemperaturePHY
SRV2LDUWXXDXXXEXXXV10IX
Options for parameters
Fixed parameterCPU TypeWiFi/BTMemoryeMMCRevisionTemperaturePHY
SRV2LSO = RZ/V2L Solo
V2LDU = RZ/V2L Dual
WB1 = Inc. WiFi/BT
W00 = No WiFi/BT
D512 = 512MB
D01G = 1GB
D02G = 2GB
E000 = No eMMC
E008 = 8GB
E016 = 16GB
E032 = 32GB
E064 = 64GB
V10I = Industrial0 = No PHY
1 = 1 x PHY
2 = 2 x PHYs
