CN9130 System on Module

4 x Arm Cortex-A72, up to 2.2GHz

  • Advanced security, edge computing and intelligent networking capabilities
  • Onboard eMMC and up to 8GB DDR4
  • Flexible designs scaling from 6 SERDES to 18 SERDES IOs

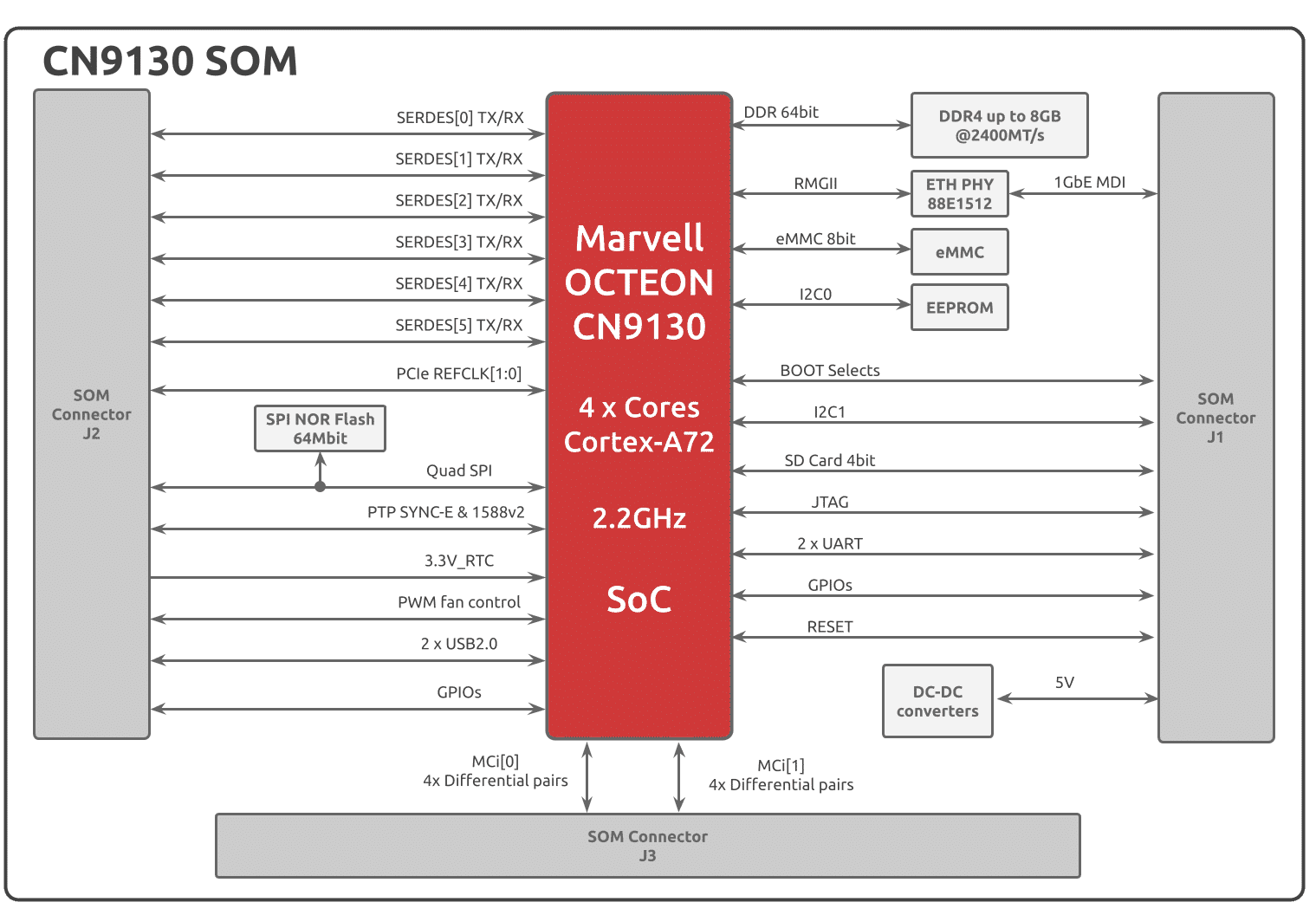

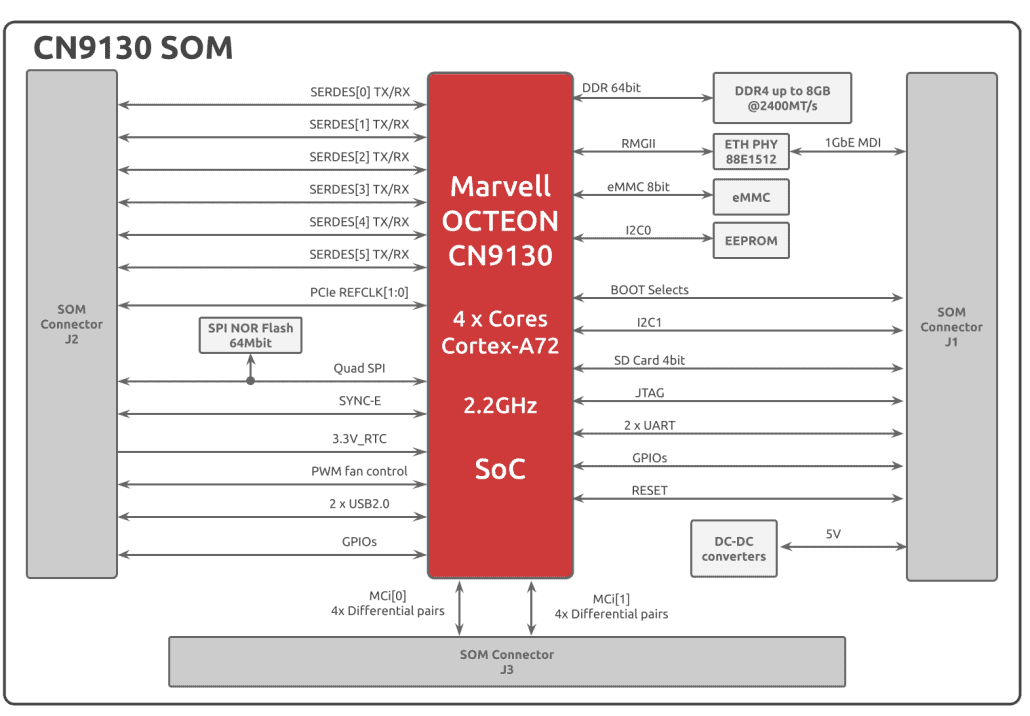

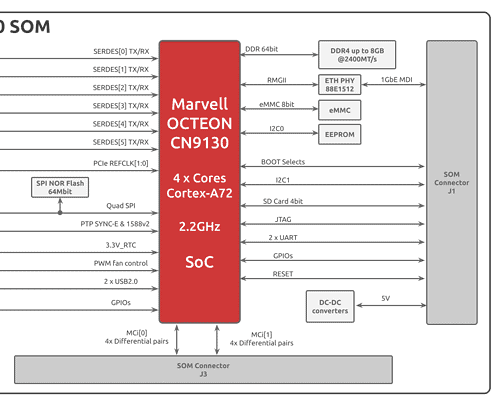

CN9130 SOM block diagram

CN9130 SOM – Best in Class Networking Performance

SolidRun’s Marvell based CN9130 SOM is designed for next generation intelligent networking, security and edge computing applications such as 5G DU, 5G CU, routers and gateways, edge servers and software defined storage / NAS. The system on a module packs the CPU, power management, memory and storage all in a 50 x 35mm package allowing compact and modular designs.

  • High Speed Networking

    The CN9130 SOM offers multiple high speed interfaces such as 1 x 10GbE port, USB 3.0, up to 3 x PCIe controllers RC/EP and more, for intelligent networking applications.

  • Modular Connectivity

    Developers who are interested to design a custom carrier board can utilize up to 2 x 88F8215 MCi (Modular chip interface) that can expand the product to 12 / 18 SERDES lanes and adding 62/124 GPIOs for additional flexibility.

  • Optimized Performance

    The SoC is produced using cutting edge 16nm FinFet production process enabling high performance at low power consumption and allowing a fanless design for industrial applications.

  • Best Price/Performance/Size Ratio

    Providing 4 x Cortex A72 cores with high fanout at only 1750 [mm2] allows to design a modular, compact and advanced products with attractive and optimized costs structure.

marvell netwoking logo bar

CN9130 Kits

To make it easier for you, we’ve created evaluation kits that can serve as a complete development platform for both evaluation and application development purposes.

The CN9130 Evaluation kit | Base includes Marvell OCTEON CN9130, 4 x Arm Cortex-A72 + all the relevant accessories for checking connectivity features and performance.
The CN9130 Evaluation kit | Pro includes Marvell OCTEON CN9130, 4 x Arm Cortex-A72 + all the relevant accessories for checking connectivity features and performance.
ClearFog CN9130 Pro Kit

Related Articles

CN9130 SYSTEM ON MODULE

Our Approach

To simplify development and deployment to our customers SolidRun SW R&D teams are set to provide:
– Optimized BSP.
– Stable long term support for selected distributions.
– Ongoing contributions to mainline projects and community initiatives.
All of our public source code is available on our GitHub page.

debianubuntoopenwrt
debianubuntuopenwrt 1

Where to Start?

SolidRun Developer Center is a knowledge base platform that contains hundreds of articles about topics such as getting started, product documentation and reference designs, in-depth software articles,
software development guidelines and much more.
New articles are added on a weekly basis by our hardware and software engineers.

For more information about the CN9130 software section click here.

btn developerCenter 2

Always There for You

Our global technical support department will be happy to assist you, don’t hesitate to contact us!

CN9130

CPU DetailsMarvell OCTEON CN9130 *
4 x Arm Cortex-A72
CPU SpeedUp to 2.2GHz
RAMup to 8GB DDR4
Internal Storage8GB eMMC
64Mb SPI
External Storage SupportNOR-Flash
SD
PCIe-SSD
Ethernet1 x 10/5 GbE port
2 x 1/2.5 GbE Port *
2 x 5 GbE Port
1 x 1/2.5 GbE Port
Sync-E, 1588-V2
USB 2.02
USB 3.0Up to 2 (Host/Device)**
PCIe1 (Gen 3.0) x4 + 2 (Gen 3.0) x1**
Total of 3 controllers and up to 6 lanes
I2C2
SPI1
UART2
GPIO
PWM
SATA2 (Gen 3.0)*
SD/MMC1
JTAG
OS SupportLinux
OpenWRT
LEDE
Size50 x 35 mm
Interface3 x Hirose DF40 connectors
Main Voltage5V-12V
I/O Voltage3.3V/1.8V
TemperatureCommercial: 0°C to 70°C
Industrial: -40°C to 85°C
HumidityHumidity (non-condensing): 10% – 90%

(*) 2 x MCi interfaces exposed enabling extensions on the carrier board.

(**) Configurable SERDESs based on Marvell CN913x processor specifications.

clearfog pro 05
ClearFog CN sideways square small
ClearFog CN9130 ProClearFog CN9130 Base
I/Os1 x USB 3.01 x USB 3.0
Networking1 x Port dedicated Ethernet
5 x Switched Ethernet RJ45 10/100/1000
1 x SFP+
2 x Ethernet RJ45 10/100/1000
1 x SFP+
ProcessorMarvell OCTEON based CN9130 Quad core Arm Cortex A72 up to 2.2 GHzMarvell OCTEON based CN9130 Quad core Arm Cortex A72 up to 2.2 GHz
Memory & Storageup to 16GB DDR4
8GB eMMC
MicroSD
up to 16GB DDR4
8GB eMMC
MicroSD
Misc.Indication LEDs
User Push Buttons
RTC Battery
JTAG Header
Analog Audio/TDM module support
Indication LEDs
User Push Buttons
RTC Battery
Development and Debug interfacesMicro USBMicro USB
Power9V-32V
Advanced Power Control
Fan Control
9V-32V
Expansion card I/OsmikroBUS header
M.2
2 x mSATA/mPCIE with SIM holder
mikroBUS header
Mini Pcie with SIM holder
M.2
TemperatureCommercial: 0°C to 40°C
Industrial: -20°C to 65°C
Commercial: 0°C to 40°C
Industrial: -20°C to 65°C
DimensionsPCBA: 225 x 100mm
Enclosure : 255 x 105 x 35mm
PCBA: 100 x 70mm
Enclosure : 120 x 80 x 30mm
EnclosureExtruded aluminum
Extruded aluminum

Coming Soon

Please use the template below to create the configuration you are interested in. Since there are many options for each SOM configuration it is not possible to keep all of them in stock, for this purpose SolidRun provides off the shelf configurations with high runner part numbers, please visit our shop to review all of them.

Choose your CN9130 configuration:

Part number structure
Fixed parameterCPU TypeSPIMemoryeMMCRevisionTemperatureFixed parameter
SRS9130SXXD0XGEXXXV11X0
Options for parameters
Fixed parameterCPU TypeSPIMemoryeMMCRevisionTemperatureFixed parameter
SRS9130 = CN9130
S64 = 64MB D01G = 1GB
D02G = 2GB
D03G = 3GB
