RZ/G2L System on Module

Up to 2 x Arm Cortex-A55, 1 x Cortex-M33

  • Dual core Arm Cortex A55 up to 1.2GHz + Cortex M33
  • Onboard Certified Dual Band WiFi 802.11 a/b/g/n/ac with Bluetooth 5.0
  • Pin to Pin compatible with RZ/V2L SOM
  • The CIP (Civil Infrastructure Platform) Linux ensures robust, sustainable infrastructural systems
wdt_ID Feature Details
1 CPU Renesas RZ/G2L 2x Arm® Cortex®-A55 @ Up to 1.2 GHz 1x Cortex®-M33
2 RAM Default: 1 GB DDR4, Up to 2 GB DDR4
3 eMMC Default: 8 GB, Up to 64 GB.
4 Ethernet Up to 2 X 10/100/1000 Mbps phy on board
5 Wireless 802.11 b/g/n/ac + BT 5.0
6 GPU Arm Mali-G31
7 3D GPU Support OpenGL ES1.1 / 2.0 / 3.0 / 3.1 and 3.2 Supported OpenCL 2.0 Full Profile Supported
8 USB 2X USB2.0
9 I/O Interfaces 3x UART, 3x I2C, 2x SPI, GPIO, PWM, 2x SD/MMC
10 CAN 2x CAN FD
11 Display Interface 1x MIPI DSI, RGB
12 Camera Interface 1x MIPI CSI-2 support 5MP, 30 fps
13 B2B Connectors 3x Hirose DF40 connectors
14 External Storage Support SD
15 Supply Voltage 5V
16 I/O Voltage 3.3V
17 Power Consumption <5W
18 Temperature Commercial: 0°C to 70°C Industrial: -40°C to 85°C
19 Product Longevity 2032
20 Supported OS Embedded Linux (Yocto/Debian Distribution)
21 Form Factor Mezzanine, size 47 x 30 mm
wdt_ID Feature Details
1 CPU Renesas RZ/G2L 2x Arm® Cortex®-A55 @ Up to 1.2 GHz 1x Cortex®-M33
2 RAM Default: 1 GB DDR4, Up to 2 GB DDR4
3 eMMC Default: 8 GB, Up to 64 GB.
4 Ethernet Up to 2 X 10/100/1000 Mbps phy on board
5 Wireless 802.11 b/g/n/ac + BT 5.0
6 GPU Arm Mali-G31
7 3D GPU Support OpenGL ES1.1 / 2.0 / 3.0 / 3.1 and 3.2 Supported OpenCL 2.0 Full Profile Supported
8 USB 2X USB2.0
9 I/O Interfaces 3x UART, 3x I2C, 2x SPI, GPIO, PWM, 2x SD/MMC
10 CAN 2x CAN FD
11 Display Interface 1x MIPI DSI, RGB
12 Camera Interface 1x MIPI CSI-2 support 5MP, 30 fps
13 B2B Connectors 3x Hirose DF40 connectors
14 External Storage Support SD
15 Supply Voltage 5V
16 I/O Voltage 3.3V
17 Power Consumption <5W
18 Temperature Commercial: 0°C to 70°C Industrial: -40°C to 85°C
19 Product Longevity 2032
20 Supported OS Embedded Linux (Yocto/Debian Distribution)
21 Form Factor Mezzanine, size 47 x 30 mm

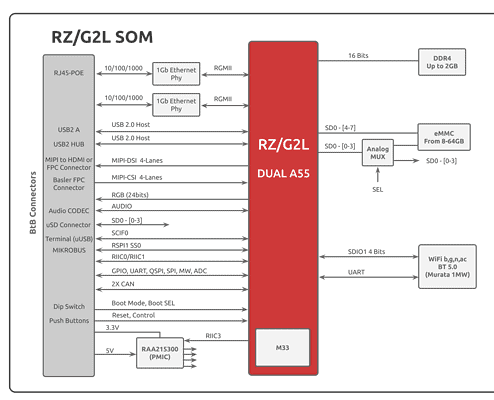

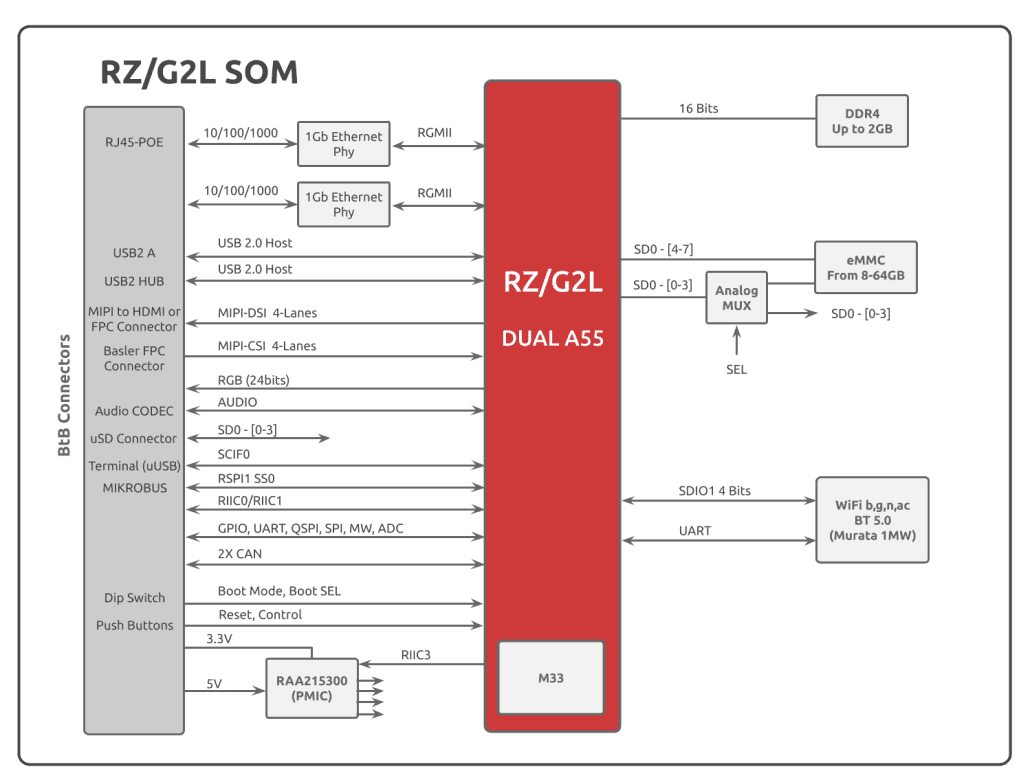

Renesas RZ/G2L SOM

SolidRun’s RZ/G2L SoM features a Cortex®-A55 (1.2 GHz) CPU, 16-bit DDR4 interface, 3D graphics engine with Arm Mali-G31 and video codec (H.264). It also supports various interfaces such as camera input, display output, USB 2.0, and Gbit-Ether, making it ideal for applications such as entry-class industrial human-machine interfaces (HMIs) and embedded devices with video capabilities. The SOM includes onboard certified dual band 11ac WiFi and BT 5.0, onboard eMMC, memory and power management. The SOM will enable developers to quickly and easily create powerful and reliable embedded systems with minimal design effort.

SolidRun’s RZ/G2L system on a module (SOM) provides improved CPU processing performance, allowing for faster and more responsive HMI applications. Additionally, the MPU’s high reliability and low power consumption make it ideal for use in HMI applications that require continuous operation and minimal downtime.

Developers and operations teams can enjoy predictable and long-lasting support with the RZ/G2L SOM, thanks to its 10-year longevity program. In addition to this, the SOM is paired with long-term maintenance and support on Linux CIP (Civil Infrastructure Project), ensuring that development and deployment schedules and applications are supported throughout their lifecycle.

Developers can use the same carrier board for different products and applications with SolidRun’s RZ/G2L SOM, which is pin-to-pin compatible with the RZ/V2L SOM that incorporates Renesas’s DRP-AI technology for secure and effective edge AI processing. This compatibility allows for seamless switching between SOMs while maintaining the same software stack and applications.

SolidRun’s RZ/G2L SOM features many different assembly options such as Single / Dual core variants, temperature ranges, memory and storage sizes, optional WiFi/BLE and much more. We know that many customers have unique requirements and we will happily configure the SOM exactly to your specific application needs to improve costs and supply chain.

Related Articles

Renesas RZ G2L SOM
CIP The Civil Infrastracture Platform blog
Renesas RZ G2UL
Rz 01
Tools

Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
Pinout Planner Tool

Carrier Boards

HummingBoard Pro Product Brief
HummingBoard Pro Block Diagram
HummingBoard Pro Quick Start Guide
HummingBoard Pro Schematics (Rev. 1.0)

HummingBoard Ripple Schematics (Rev 2.5)
HummingBoard Ripple Schematics (Rev 2.5)
HummingBoard Ripple Schematics (Rev 2.5)

OS Support

Linux Board Support Package
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution

Linux – Distribution

Mechanical

DXF Files
3D Files
DXF Files
3D Files
DXF Files
DXF Files

HUMMINGBOARD RZ/G2L PRO SBC
Processor
Renesas RZ/G2L Solo / Dual core Arm Cortex A55
Up to 1.2GHz (With Arm M33)
Memory & Storage
Up to 2GB DDR4
Starting from 8GB eMMC
MicroSD
Display
HDMI (ADI bridge MIPI-DSI to HDMI)
I/Os
2 x USB 2.0
1 x MIPI-CSI
1 x Digital audio (Riser interface FPC connector)
1 x Onboard audio codec
Networking
2 x Ethernet RJ45 10/100/1000
1 x 802.11 a/b/g/n/ac WiFi and Bluetooth (2.4/5 GHz)
Misc.
1 x Reset button
1 x Configurable push button
3 x LED indicators
RTC
Development and Debug interfaces
Micro USB
Power
7V – 36V
PoE sink support 802.3af Class 0
Expansion card I/Os
mikroBUS header
Mini Pcie with SIM holder
Temperature
Commercial: 0°C to 70°C
Industrial: -40°C to 85°C
Dimensions
PCBA: 100 x 70mm
Enclosure : 120 x 80 x 30mm
Enclosure
Extruded aluminum
RZG2L EV Kit
RZ/G2L- Evaluation Kit
System on Modules (SoM)
Renesas RZ/G2L, 1.2 GHz, Cortex A-55 + Cortex M-33
1GB RAM, 8GB eMMC
2x GbE
Wi-Fi 802.11b/g/n/ac
Bluetooth 5.0
-40 to 85°C
Included Carrier Board
HUMMINGBOARD RZ/G2L PRO
Micro SD
SanDisk Memory Cards 16GB SDSDQAD-016G
Antenna WiFi/ BT
RF ANT 2.4GHZ/5.4GHZ FLAT PATCH
Heatsink
Heatsink for G2L SOM
Universal Power adapter
12V/1A Power adapter with 4 plugs
Micro USB Cable
USB to Micro USB Cable
LTE Modem (Optional)
Quectel EC25A – LTE Cat 4 US / Quectel EC25E – LTE Cat 4 EU
Touch Screen (Optional)
5″ HDMI / 7″ HDMI +
5V/3A Power adapter with 4 plugs +
USB to Micro USB Cable
MIPI CSI Camera (Optional)
In Development

Please use the template below to create the configuration you are interested in.

Since there are many options for each SOM configuration, it is not possible to keep all of them in stock. Because of this, SolidRun provides off-the-shelf configurations with high-runner part numbers, please visit our shop to review all of them.

Choose your RZ/G2L configuration:

Part number structure
Fixed parameterCPU TypeWiFi/BTMemoryeMMCRevisionTemperaturePHY
SRG2LDU
WXXDXXXEXXXV10XX
Options for parameters
Fixed parameterCPU TypeWiFi/BTMemoryeMMCRevisionTemperaturePHY
SRG2LSO = RZ/G2L Single Core

G2LDU = RZ/G2L Dual Core

WB1 = Inc. WiFi/BT
W00 = No WiFi/BT
D512 = 512MB
D01G = 1GB
D02G = 2GB
E000 = No eMMC
E004 = 4GB
E008 = 8GB
E016 = 16GB
E032 = 32GB
E064 = 64GB
V10C = Commercial
I = Industrial
0 = No PHY
1 = 1 x PHY
2 = 2 x PHYs
