Marvell ARMADA A388 based Single
Board Computer
Discover the endless potential of the powerful ARM based boards of ClearFog. The family includes the ClearFog Pro and ClearFog Base. Harnessing the robust processing abilities of the ARMADA 388 SoC from Marvell, the ClearFog offers vast application potential as a flexible development board or a ready to deploy solution.
Alongside the powerful ARMADA 388 SoC, the ClearFog includes a variety of I/O and connectivity technologies such as multiple mPCIe/mSATA sockets, PoE expansion header, audio/telephony module header, mikroBUS™ – a simple socket allowing you to integrate a wide range of MikroElektronika click boards™ modular extensions, making ClearFog the perfect edge or fog computing solution.
| Comparison | ClearFog Pro | ClearFog Base |
|---|---|---|
| I/Os | 1 x USB 3.0 | 1 x USB 3.0 |
| Networking | 1 x Port dedicated Ethernet 5 x Switched Ethernet RJ45 10/100/1000 1 x SFP (up to 2.5GbE) | 2 x Ethernet RJ45 10/100/1000 1 x SFP (up to 2.5GbE) |
| Processor | Marvell ARMADA based A388 Dual core Arm Cortex A9 up to 1.6 GHz | Marvell ARMADA based A388 Dual core Arm Cortex A9 up to 1.6 GHz |
| Memory & Storage | Up to 2GB DDR3 8GB eMMC MicroSD | Up to 2GB DDR3 8GB eMMC MicroSD |
| Misc. | Indication LEDs User Push Buttons RTC Battery JTAG Header Analog Audio/TDM module support | Indication LEDs User Push Buttons RTC Battery |
| Development and Debug interfaces | Micro USB | Micro USB |
| Power | 9V-32V Advanced Power Control Fan Control | 9V-32V |
| Expansion card I/Os | mikroBUS header M.2 2 x mSATA/mPCIE with SIM holder | mikroBUS header Mini Pcie with SIM holder M.2 |
| Temperature | Commercial: 0°C to 70°C Industrial: -40°C to 85°C | :Commercial: 0°C to 70°C Industrial: -40°C to 85°C |
| Dimensions | PCBA: 225 x 100mm Enclosure : 255 x 105 x 35mm | PCBA: 100 x 70mm Enclosure : 120 x 80 x 30mm |
| Enclosure | Extruded aluminum | Extruded aluminum |
To simplify development and deployment to our customers SolidRun SW R&D teams are set to provide:
– Optimized BSP.
– Stable long term support for selected distributions.
– Ongoing contributions to mainline projects and community initiatives.
All of our public source code is available on our GitHub page.
SolidRun Developer Center is a knowledge base platform that contains hundreds of articles about topics such as getting started, product documentation and reference designs, in-depth software articles,
software development guidelines and much more.
New articles are added on a weekly basis by our hardware and software engineers.
For more information about the ClearFog software section click here.
Our global technical support department will be happy to assist you, don’t hesitate to contact us!
Combined, the ClearFog is the perfect board for developers and engineers for networking, routing, storage and IoT gateway applications.

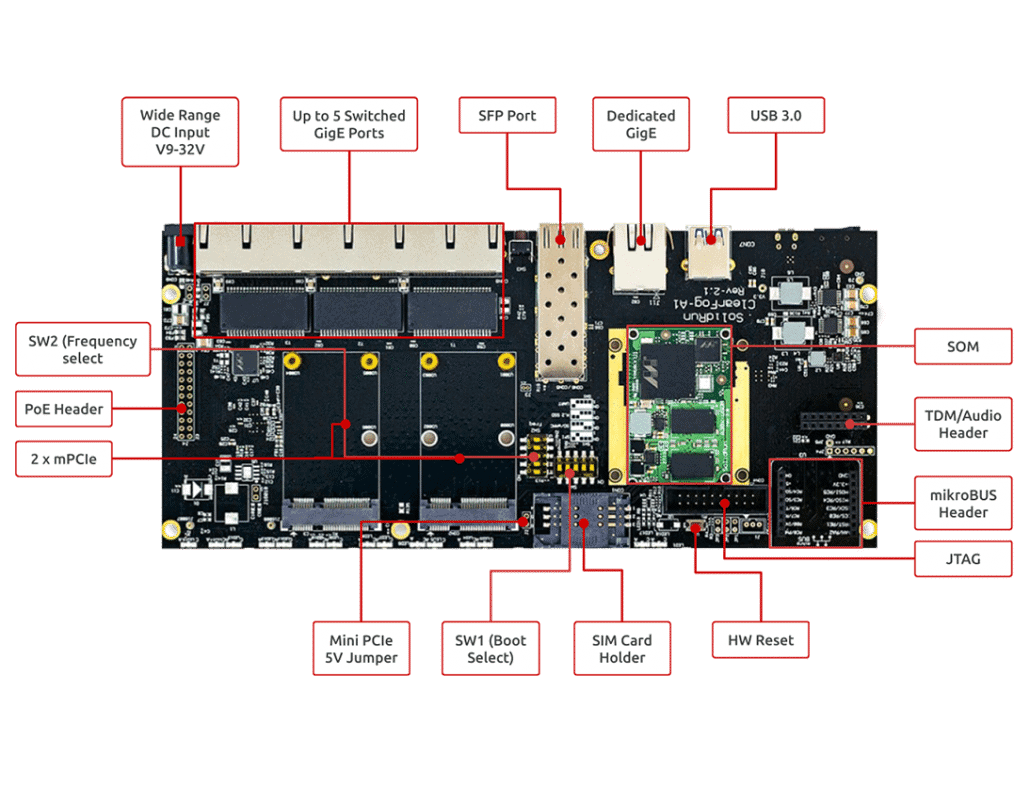

| CLEARFOG A388 PRO | |
|---|---|
| I/Os | 1 x USB 3.0 |
| Networking | 1 x Port dedicated Ethernet 5 x Switched Ethernet RJ45 10/100/1000 1 x SFP (up to 2.5GbE) |
| Processor | Marvell ARMADA based A388 Dual core Arm Cortex A9 up to 1.6 GHz |
| Memory & Storage | Up to 2GB DDR3 8GB eMMC MicroSD |
| Misc. | Indication LEDs User Push Buttons RTC Battery JTAG Header Analog Audio/TDM module support |
| Development and Debug interfaces | Micro USB |
| Power | 9V-32V Advanced Power Control Fan Control |
| Expansion card I/Os | mikroBUS header M.2 2 x mSATA/mPCIE with SIM holder |
| Temperature | Commercial: 0°C to 70°C Industrial: -40°C to 85°C |
| Dimensions | PCBA: 225 x 100mm Enclosure : 255 x 105 x 35mm |
| Enclosure | Extruded aluminum |
ClearFog Base SBC is equipped with numerous I/O options, and is compatible with a variety of power, memory and storage configurations. Device makers can easily bridge a variety of different network standards like LAN, Wi-Fi, Cellular, Fiber and DSL, as well as utilize mikroBUS boards for IoT type networking standards such as ZigBee, Sub GHz, Bluetooth and others.
| CLEARFOG A388 BASE | |
|---|---|
| I/Os | 1 x USB 3.0 |
| Networking | 2 x Ethernet RJ45 10/100/1000 1 x SFP (up to 2.5GbE) |
| Processor | Marvell ARMADA based A388 Dual core Arm Cortex A9 up to 1.6 GHz |
| Memory & Storage | Up to 2GB DDR3 8GB eMMC MicroSD |
| Misc. | Indication LEDs User Push Buttons RTC Battery |
| Development and Debug interfaces | Micro USB |
| Power | 9V-32V |
| Expansion card I/Os | mikroBUS header Mini PCIe with SIM holder M.2 |
| Temperature | :Commercial: 0°C to 70°C Industrial: -40°C to 85°C |
| Dimensions | PCBA: 100 x 70mm Enclosure : 120 x 80 x 30mm |
| Enclosure | Extruded aluminum |
12V, 1.5A US Power Adapter
For the HummingBoard Edge/Gate/Pro families
12V, 1.5A EU Power Adapter
For the HummingBoard Edge/Gate/Pro families
Micro SD 16GB
Blank SanDisk Class 10 Micro SD 16GB
Please use the template below to create the configuration you are interested in. Since there are many options for each SOM configuration it is not possible to keep all of them in stock, for this purpose SolidRun provides off the shelf configurations with high runner part numbers, please visit our shop to review all of them.
| Fixed parameter | CPU Type | SPI | Memory | eMMC | Carrier Board | Revision | Temperature | Heatsink /Enclosure |
| SR | M6828 | S00 | DXXX | EXXX | X | 03 | X | X |
| Fixed parameter | CPU Type | SPI | Memory | eMMC | Carrier Board | Revision | Temperature | Heatsink /Enclosure |
| SR | M6828 | S00 = 32MB | D512 = 512MB D01G = 1GB D02G = 2GB D03G = 2GB with ECC | E000 = No eMMC E008 = 8GB E016 = 16GB E032 = 32GB E064 = 64GB | B = Base P = Pro | 03 | C = Commercial I = Industrial | H = Heatsink E = Enclosure |
