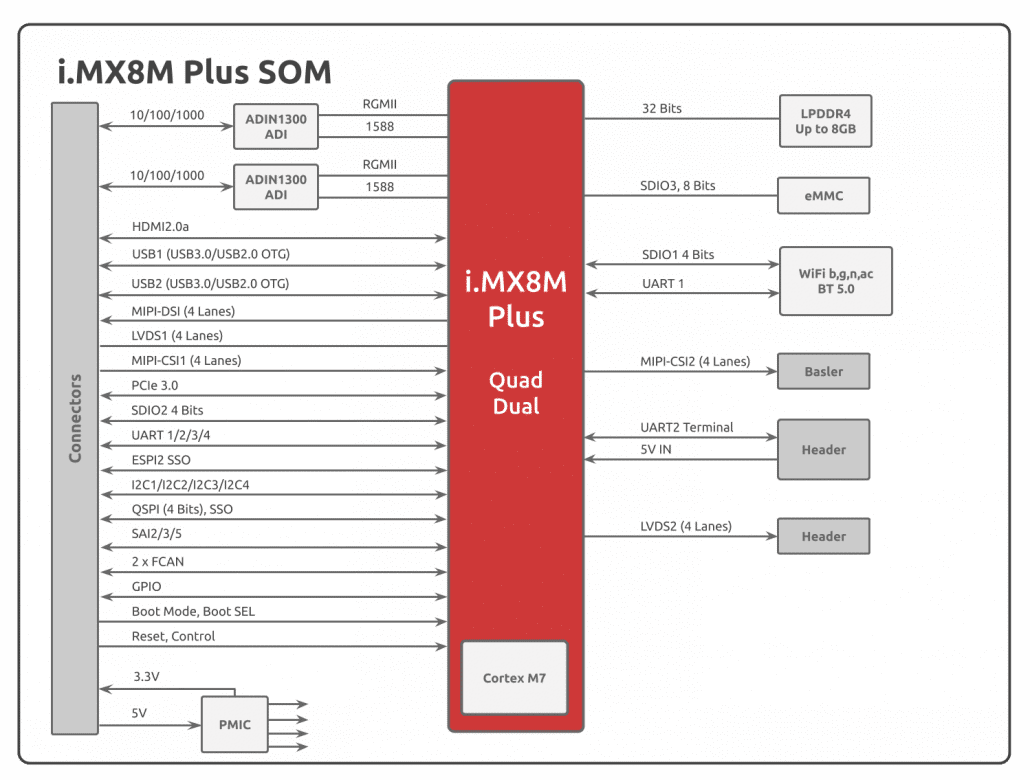

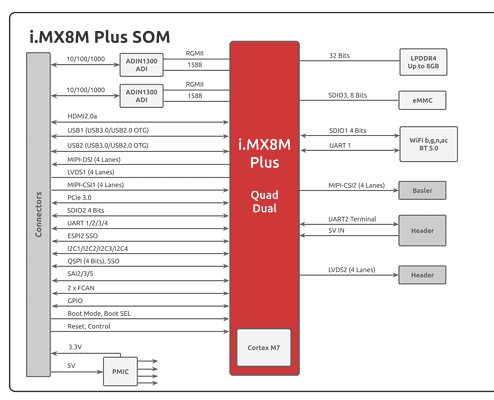

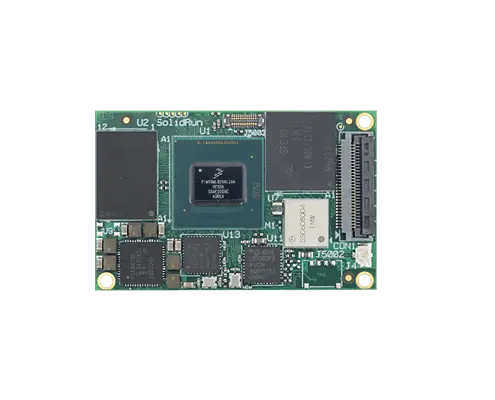

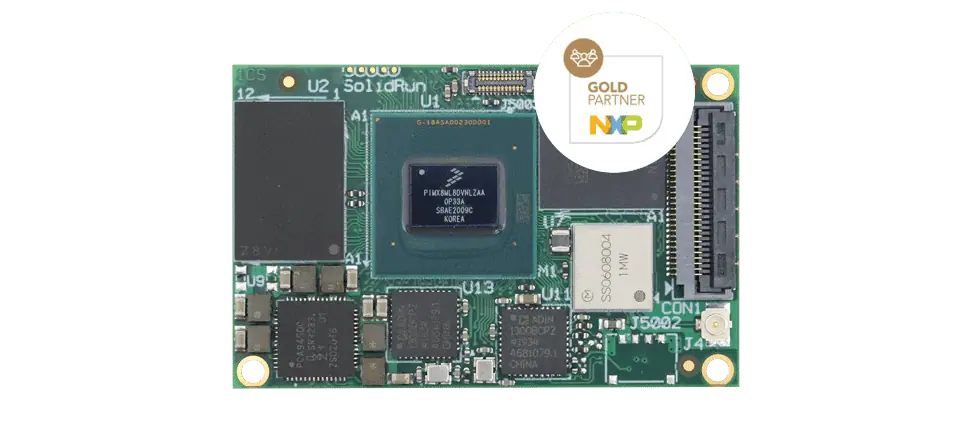

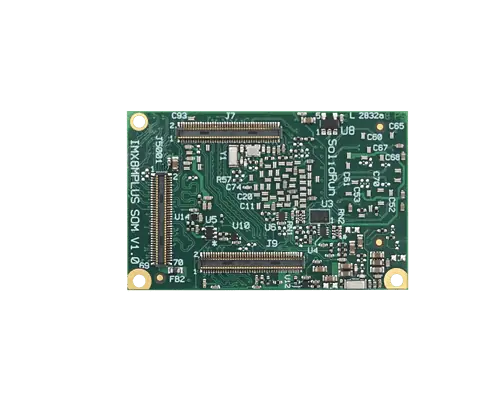

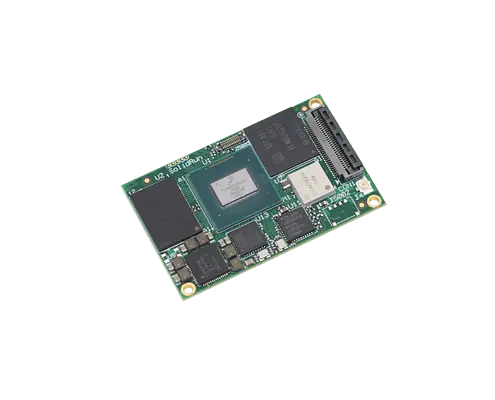

Up to 4 x Arm Cortex-A53, 1 x Cortex-M7, up to 1.8GHz
| wdt_ID | Feature | Details |
|---|---|---|
| 49 | CPU | NXP i.MX 8M Plus 4x Arm® Cortex®-A53 @1.8 GHz Commercial,1.6 GHz Industrial, 1x Arm® Cortex®-M7 |
| 50 | RAM | 4 GB LPDDR4, optional: 1 GB LPDDR4, 2 GB LPDDR4, 3 GB LPDDR4, up to 8GB LPDDR4 |
| 51 | eMMC | 8 GB, optional: Up to 64 GB |
| 52 | Ethernet | 2x 10/100/1000 Mbps, 1x with TSN |
| 53 | Wireless | 802.11 ac/a/b/g/n + BT 5.0 |
| 54 | GPU | Vivante GC7000UL |
| 55 | 3D GPU Support | OpenGL ES 3.1/3.0, Vulkan, Open CL 1.2 FP, OpenVG 1.1 |
| 56 | Video Decoder | 1080p60 |
| 57 | Video Encoder | 1080p60 |
| 58 | USB | 2X USB3.0 |
| 59 | I/O Interfaces | 3x UART, 3x I2C, 1x SPI, 1x PCIe(Gen 3.0), 75x GPIO, 4x PWM, 1x SD/eMMC, 1x S/PDIF |
| 60 | CAN | 2x CAN FD |
| 61 | Display Interface | HDMI 2.0, MIPI-DSI, LVDS |
| 62 | Camera Interface | 1x MIPI-CSI2 (4 Lane), 2x ISP |
| 63 | B2B Connectors | 3x Hirose DF40 connectors |
| 64 | External Storage Support | SD, NVMe |
| 65 | Digital audio | 18x I2S TDM, DSD512, 8-ch PDM Mic input, eARC ASRC, Low power voice accelerator: Cadence® Tensilica® HiFi 4 DSP @ 800 MHz |
| 66 | Supply Voltage | 5V |
| 67 | I/O Voltage | 3.3V/ 1.8V |
| 68 | Power Consumption | <5W |
| 69 | Temperature | Commercial: 0°C to 70°C, Industrial: -40°C to 85°C |
| 70 | Product Longevity | 2036 |
| 71 | Supported OS | Embedded Linux (Yocto/Debian Distribution) |
| 72 | Form Factor | Mezzanine, size 47 x 30 mm |
| wdt_ID | Feature | Details |
|---|---|---|
| 49 | CPU | NXP i.MX 8M Plus 4x Arm® Cortex®-A53 @1.8 GHz Commercial,1.6 GHz Industrial, 1x Arm® Cortex®-M7 |
| 50 | RAM | 4 GB LPDDR4, optional: 1 GB LPDDR4, 2 GB LPDDR4, 3 GB LPDDR4, up to 8GB LPDDR4 |
| 51 | eMMC | 8 GB, optional: Up to 64 GB |
| 52 | Ethernet | 2x 10/100/1000 Mbps, 1x with TSN |
| 53 | Wireless | 802.11 ac/a/b/g/n + BT 5.0 |
| 54 | GPU | Vivante GC7000UL |
| 55 | 3D GPU Support | OpenGL ES 3.1/3.0, Vulkan, Open CL 1.2 FP, OpenVG 1.1 |
| 56 | Video Decoder | 1080p60 |
| 57 | Video Encoder | 1080p60 |
| 58 | USB | 2X USB3.0 |
| 59 | I/O Interfaces | 3x UART, 3x I2C, 1x SPI, 1x PCIe(Gen 3.0), 75x GPIO, 4x PWM, 1x SD/eMMC, 1x S/PDIF |
| 60 | CAN | 2x CAN FD |
| 61 | Display Interface | HDMI 2.0, MIPI-DSI, LVDS |
| 62 | Camera Interface | 1x MIPI-CSI2 (4 Lane), 2x ISP |
| 63 | B2B Connectors | 3x Hirose DF40 connectors |
| 64 | External Storage Support | SD, NVMe |
| 65 | Digital audio | 18x I2S TDM, DSD512, 8-ch PDM Mic input, eARC ASRC, Low power voice accelerator: Cadence® Tensilica® HiFi 4 DSP @ 800 MHz |
| 66 | Supply Voltage | 5V |
| 67 | I/O Voltage | 3.3V/ 1.8V |
| 68 | Power Consumption | <5W |
| 69 | Temperature | Commercial: 0°C to 70°C, Industrial: -40°C to 85°C |
| 70 | Product Longevity | 2036 |
| 71 | Supported OS | Embedded Linux (Yocto/Debian Distribution) |
| 72 | Form Factor | Mezzanine, size 47 x 30 mm |
Based on Arm Cortex A53 technology and manufacturing process utilizing 14LPC FinFET process, the NXP i.MX 8M Plus SoC provides high performance and processing speed, while keeping the power consumption to a minimum.
The built-in NPU (up to 2.3TOPs) provides customers the option to perform machine learning inference directly on the edge, reducing cloud dependency, latency and is able to perform highly complex neural network functions like face and emotion detection, object detection and surveillance, which are key to applications such as smart and safe cities, retail, smart home and much more.
Featuring additional high-speed interfaces such as 2 x Gigabit Ethernet, TSN, PCIe Gen 3, USB 3.0, and CAN-FD capabilities, offering industrial temperature grade and NXP’s longevity program, the i.MX8M Plus SOM is perfect for industrial IoT and HMI applications.
High-Performance Machine Learning to the Edge
iMX8M Plus SoM Integrated machine learning accelerator that can process neural networks roughly thirty times faster than Arm® processor cores. NXP eIQ software includes inference engines, neural network compilers and optimized libraries.
Intelligent Vision System
Dual ISP and MIPI-CSI interfaces allow the i.MX8M Plus SOM to offer an intelligent and compact vision system for real-time image processing in high definition.
Industry 4.0 Reliability
Industry 4.0 applications utilizing the built-in TSN capability for low latency and precise time synchronization. Create a real-time control process using the M7 core and CAN-FD interface for industrial applications.
Pin Compatibility
Scale up or down between SolidRun’s i.MX8 product families that include the i.MX8M Plus / i.MX8M Mini / i.MX8M / i.MX8M Nano. Pin compatibility and shared software resources allow a flexible and forward-thinking approach for creating future proof products for demanding and low power applications.

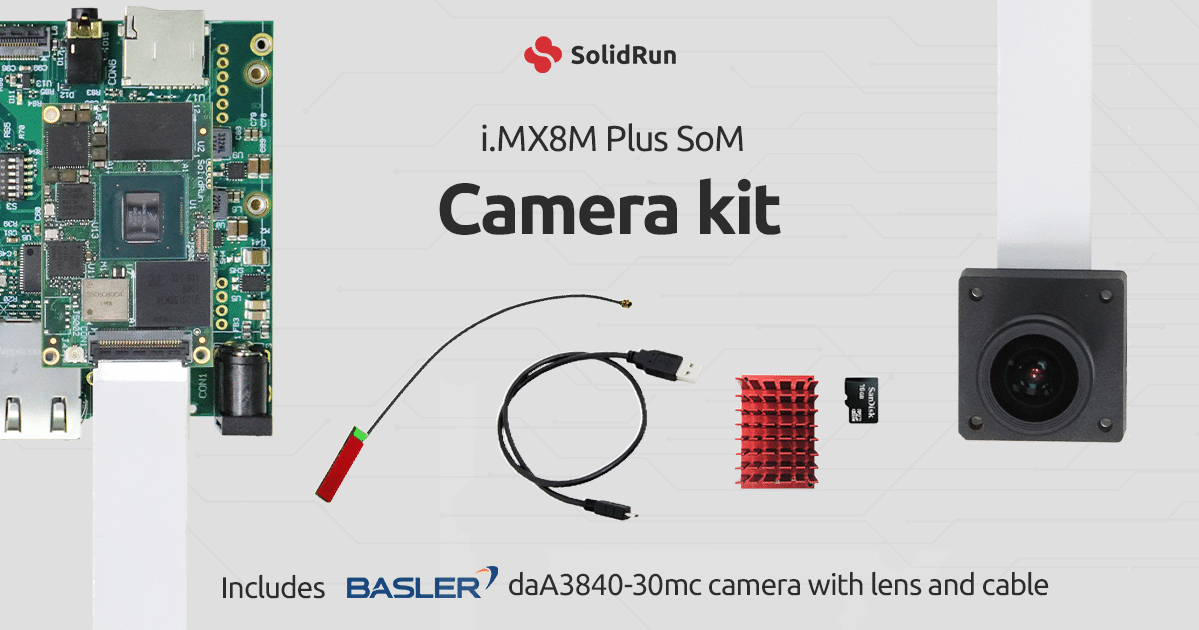

https://www.solid-run.com/wp-content/uploads/2021/12/Artboard-4.png
630
1199
Yael Cohen
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Yael Cohen2021-12-21 17:59:502023-01-23 15:43:25i.MX8M Plus SOM Camera Kit
https://www.solid-run.com/wp-content/uploads/2021/12/thumbnail_-1.png
720
1280
Yael Cohen
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Yael Cohen2021-12-14 09:42:412022-02-17 11:29:15NXP Connect 2021- Easy Development for i.MX 8 & LX216x Based Applications NXP i.MX8M Plus SOM Product Brief
NXP i.MX8M Plus SOM HW User Manual
Simplified Schematics
Family Comparison Chart
Family Comparison Chart
Family Comparison Chart
Family Comparison Chart
Family Comparison Chart
Family Comparison Chart
Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
SolidRun Community Forums
Pinout Planner Tool
Pinout Planner Tool
Pinout Planner Tool
Pinout Planner Tool
Pinout Planner Tool
HummingBoard Pulse Product Brief
HummingBoard Mate Product Brief
HummingBoard Pro Product Brief
HummingBoard Pulse Quick Start Guide
HummingBoard Mate Quick Start Guide
HummingBoard Pro Quick Start Guide
HummingBoard Pulse Schematics (R 2.5)
HummingBoard Mate Schematics
HummingBoard Pro Schematics (Rev 1.0)
Linux – Distribution (GitHub)
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution
Linux – Distribution
REACH
RoHS
ISO 9001
EMC/EMI Regulations
UL 94
Green/ Halogen Free
DXF Files
DXF Files
DXF Files
https://www.solid-run.com/wp-content/uploads/2022/05/3D-Imaging-Based-On-i.png
630
1200
Yael Cohen
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Yael Cohen2022-05-30 10:16:132022-05-30 10:16:13ADI ToF Camera
https://www.solid-run.com/wp-content/uploads/2021/02/Screenshot-2021-01-27-165726.jpg
1000
1910
hila
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
hila2021-02-10 22:44:252022-08-22 12:59:08SolidRun announces the new Cubox-M Based on i.MX 8M Plus SoM
https://www.solid-run.com/wp-content/uploads/2020/11/i.MX8-Plus-with-mate-and-basller.png
675
1200
Mona Ganem
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Mona Ganem2020-11-19 13:05:002021-10-18 01:05:18SolidRun announces the new i.MX 8M Plus Modules + Carriers
https://www.solid-run.com/wp-content/uploads/2020/11/i.MX8-plus-1.png
675
1200
Mona Ganem
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Mona Ganem2020-11-04 17:52:002021-12-28 03:05:32i.MX 8M Plus – New Kid in Town
https://www.solid-run.com/wp-content/uploads/2020/11/security-iot.png
339
435
Mona Ganem
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Mona Ganem2020-08-17 11:04:002021-10-18 00:26:03Industrial IoT Gateways Security Challenges| HummingBoard Pulse | HummingBoard Mate | HummingBoard Pro | |
|---|---|---|---|
Processor | NXP i.MX 8M Plus Dual / Quad core Arm Cortex A53 up to 1.8GHz (with Arm M7 GPP) | NXP i.MX 8M Plus Dual / Quad core Arm Cortex A53 up to 1.8GHz (with Arm M7 GPP) | NXP i.mx8M Plus Dual / Quad core Arm Cortex A53 up to 1.8GHz (with Arm M7 GPP) |
Memory & Storage | Up to 8GB LPDDR4 8GB eMMC MicroSD | Up to 8GB LPDDR4 8GB eMMC MicroSD | Up to 8GB LPDDR4 8GB eMMC MicroSD |
Display | HDMI MIPI-DSI | HDMI | HDMI |
I/Os | 2 x USB 3.0 1 x MIPI-CSI 1 x Digital audio (Riser interface FPC connector) 1 x Onboard audio codec | 2 x USB 3.0 1 x MIPI-CSI | 2 x USB 3.0 1 x MIPI-CSI 1 x Digital audio (Riser interface FPC connector) 1 x Onboard audio codec |
Networking | 2 x Ethernet RJ45 10/100/1000 1 x 802.11 a/b/g/n/ac WiFi and Bluetooth (2.4/5 GHz) | 1 x Ethernet RJ45 10/100/1000 1 x 802.11 a/b/g/n/ac WiFi and Bluetooth (2.4/5 GHz) | 2 x Ethernet RJ45 10/100/1000 1 x 802.11 a/b/g/n/ac WiFi and Bluetooth (2.4/5 GHz) |
Misc. | 1 x Reset button 1 x Configurable push button 3 x LED indicators RTC | 1 x Reset button 1 x Configurable push button 3 x LED indicators RTC | 1 x Reset button 1 x Configurable push button 3 x LED indicators RTC |
Development and Debug interfaces | Micro USB | Micro USB | Micro USB |
Power | 7V – 36V PoE sink support 802.3af Class 0 | 7V – 36V | 7V – 36V PoE sink support 802.3af Class 0 |
Expansion card I/Os | M.2 Mini Pcie with SIM holder | mikroBUS header Mini Pcie with SIM holder | M.2 mPCIe – optional to connect with Hailo-8(for i.MX8M Plus)+E5 or nVME via PCIe interface Mini Pcie with SIM holder |
Temperature | Commercial: 0°C to 70°C Industrial: -40°C to 85°C | Commercial: 0°C to 70°C Industrial: -40°C to 85°C | Commercial: 0°C to 70°C Industrial: -40°C to 85°C |
Dimensions | PCBA: 100 x 70mm Enclosure : 120 x 80 x 30mm | PCBA: 100 x 70mm Enclosure : 120 x 80 x 30mm | PCBA: 100 x 70mm Enclosure : 120 x 80 x 30mm |
Enclosure | Extruded aluminum | Extruded aluminum | Extruded aluminum |
| i.MX8M Plus Evaluation Kit | |
|---|---|
System on Modules (SoM) | NXP i.MX 8M Plus Quad, 1.8GHz, Cortex-A53 + Cortex-M7 4GB RAM, 8GB eMMC 2x GbE Wi-Fi 802.11ac/a/b/g/n Bluetooth 5.0 0 to 70°C |
Included Carrier Board
| HummingBoard Pulse / HummingBoard Pro |
Micro SD | SanDisk Memory Cards 16GB SDSDQAD-016G |
Antenna WiFi/ BT | RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
Heatsink | iMX-8-SOM Heatsink |
Universal Power adapter | 12V/1A Power adapter with 4 plugs |
Micro USB Cable | USB to Micro USB Cable |
LTE Modem (Optional) | Quectel EC25A – LTE Cat 4 US / Quectel EC25E – LTE Cat 4 EU |
Touch Screen (Optional) | “5″ HDMI / 7″ HDMI + 5V/3A Power adapter with 4 plugs + USB to Micro USB Cable” |
MIPI CSI Camera (Optional) | Basler daA3840-30mc camera with Lens and Cable |
AI accelerator (Optional) | Hailo-8 |
Please use the template below to create the configuration you are interested in. Since there are many options for each SOM configuration it is not possible to keep all of them in stock, for this purpose SolidRun provides off the shelf configurations with high runner part numbers, please visit our shop to review all of them.
| Fixed parameter | CPU Type | Cores option | WiFi/BT | Memory | eMMC | Revision | Temperature | Fixed parameter |
| SR | MP8 | XX | WXX | D0XG | EXXX | V12 | X | 0 |
| Fixed parameter | CPU Type | Cores option | WiFi/BT | Memory | eMMC | Revision | Temperature | Fixed parameter |
| SR | MP8 | DU = Dual QD = Quad | W00 = Without WiFi/BT WB1 = Include WiFi/BT | D01G = 1GB D02G = 2GB D03G = 3GB D04G = 4GB D06G = 6GB D08G = 8GB | E000 = No eMMC E008 = 8GB E016 = 16GB E032 = 32GB E064 = 64GB | V12 | C = Commercial I = Industrial | 0 |
