COM Express Type 7, 8/12/16 x Arm Cortex-A72, up to 2.2GHz

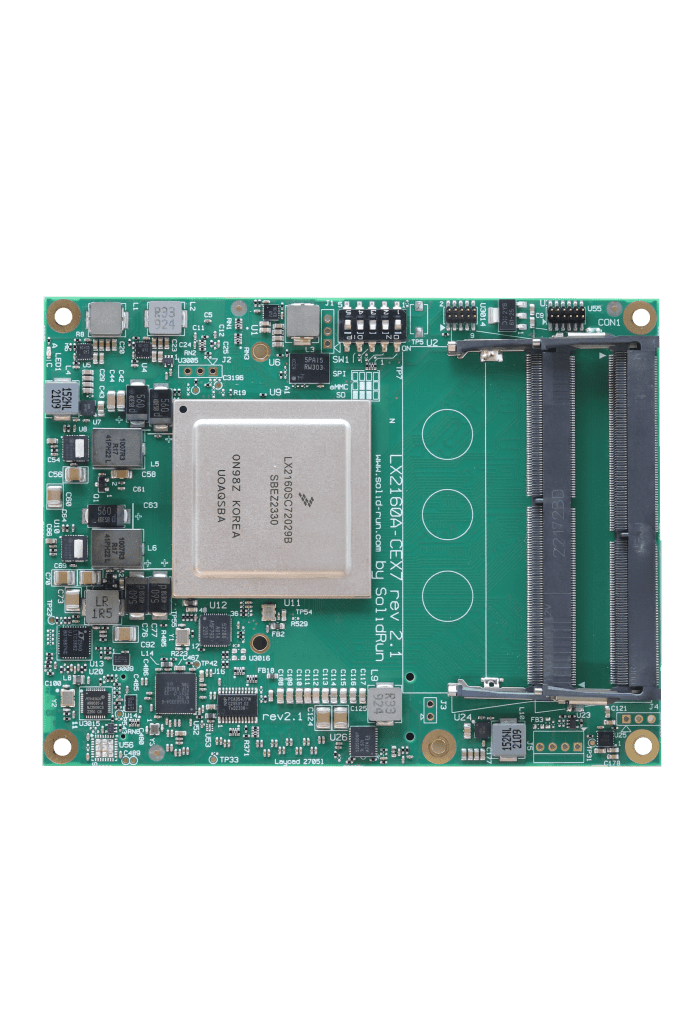

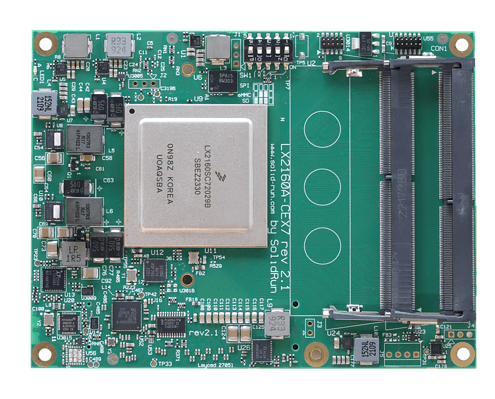

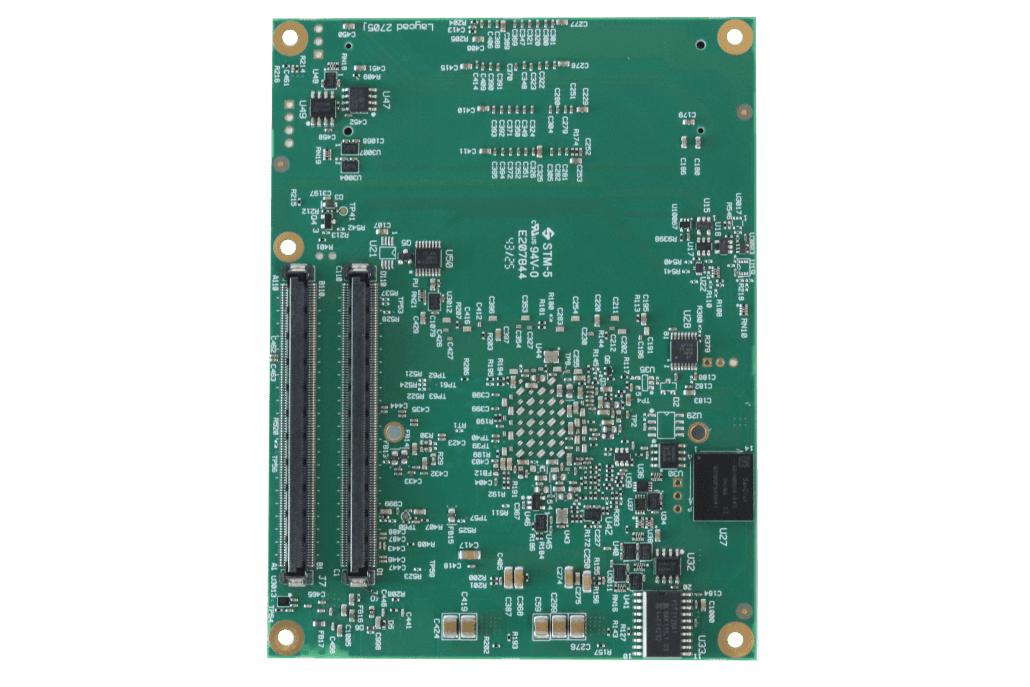

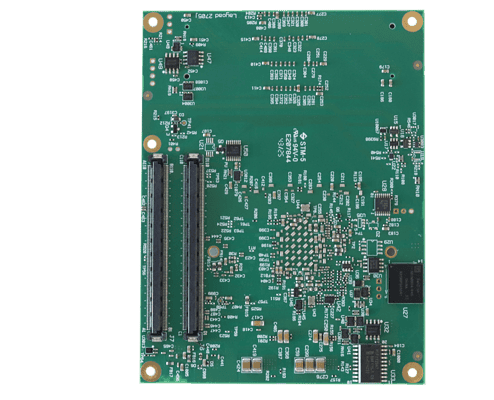

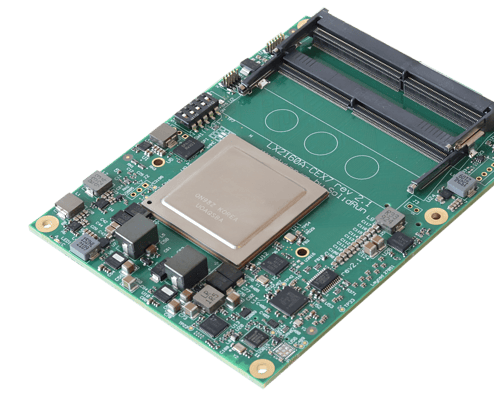

SolidRun’s LX2160A Computer-on-Module based on the COM Express type 7 form factor was designed to provide a robust and modular networking computing platform. The Layerscape LX2160A features extended processing power, connectivity options and high-end networking capabilities – making it the ideal platform for an almost endless variety of networking and edge solutions.
Layerscape LX2160A COM Express type 7 module features 16 Arm Cortex A72 processors, quad 10GbE, and 18 x PCIe Gen 3.0 lanes, providing plenty of bandwidth for data path processing in multiple networking layers.
For flexibility and scalability, SolidRun also offers the alternate Layerscape SoCs: LX2120A and LX2080A featuring 12 and 8 cores, with all other features and abilities remaining the same.
Learn more about COM Express Type 7 standard.
https://www.solid-run.com/wp-content/uploads/2021/12/thumbnail_-1.png
720
1280
Yael Cohen
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Yael Cohen2021-12-14 09:42:412022-02-17 11:29:15NXP Connect 2021- Easy Development for i.MX 8 & LX216x Based Applications
https://www.solid-run.com/wp-content/uploads/2021/11/NXP-Connect.png
630
1200
Yael Cohen
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Yael Cohen2021-11-08 21:29:472021-11-08 21:29:47NXP Connect 2021 Event
https://www.solid-run.com/wp-content/uploads/2021/02/HoneyComb-server.jpg
1230
1386
Mona Ganem
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Mona Ganem2021-02-24 12:31:152023-07-26 15:33:00HoneyComb LX2 Server
https://www.solid-run.com/wp-content/uploads/2021/02/Screenshot-2021-02-09-153746.jpg
919
1365
hila
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
hila2021-02-09 16:33:212022-05-30 15:25:08HoneyComb LX2160a and SystemReady
https://www.solid-run.com/wp-content/uploads/2020/11/Untitled-1.png
450
900
Mona Ganem
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Mona Ganem2020-09-16 15:17:002023-07-26 07:33:59Digital Transformation in Critical Infrastructure Networks
https://www.solid-run.com/wp-content/uploads/2020/11/F52AFEEF-8652-432E-BB0C-C3E419106764.png-1030x574-1.jpg
574
1030
Mona Ganem
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Mona Ganem2020-08-06 18:58:002021-02-09 16:03:12SolidRun Introduce the 5G Connected Future
https://www.solid-run.com/wp-content/uploads/2020/06/Arm-servers-1.png
675
1200
hila
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
hila2020-06-28 17:37:002020-11-30 12:03:55ARM Servers – The Promise is Back with a New Approach!
https://www.solid-run.com/wp-content/uploads/2020/04/honeycomb-video-blog-cover.png
675
1200
Jake Jones
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Jake Jones2020-04-01 11:00:472021-10-05 04:05:47HoneyComb LX2K Feature Video
https://www.solid-run.com/wp-content/uploads/2019/06/clearfog-cx-lx2k.jpg
339
435
Jake Jones
https://solid-run.com/wp-content/uploads/2020/12/SolidRun-with-under-line-01-1-300x107.png
Jake Jones2019-06-20 11:51:262021-10-05 04:13:38SolidRun Announces ClearFog CX LX2K Multicore Network & Edge Computing PowerhouseTo simplify development and deployment to our customers SolidRun SW R&D teams are set to provide:
– Optimized BSP.
– Stable long term support for selected distributions.
– Ongoing contributions to mainline projects and community initiatives.
All of our public source code is available on our GitHub page.
SolidRun Developer Center is a knowledge base platform that contains hundreds of articles about topics such as getting started, product documentation and reference designs, in-depth software articles,
software development guidelines and much more.
New articles are added on a weekly basis by our hardware and software engineers.
For more information about the Layerscape LX2160A software section click here.
Our global technical support department will be happy to assist you, don’t hesitate to contact us!
| CPU Details | NXP Layerscape LX2160A 16 x Cortex A72 | NXP Layerscape LX2120A 12 x Cortex A72 | NXP Layerscape LX2080A 8 x Cortex A72 |
| CPU Speed | 2.0GHz Commercial | 2.0GHz Commercial | 2.0GHz Commercial |
| RAM | Dual channel up to 64GB DDR4 | Dual channel up to 64GB DDR4 | Dual channel up to 64GB DDR4 |
| Internal Storage | 64GB eMMC 64MB SPI | 64GB eMMC 64MB SPI | 64GB eMMC 64MB SPI |
| External Storage Support | NOR-Flash SD PCIe-SSD | NOR-Flash SD PCIe-SSD | NOR-Flash SD PCIe-SSD |
| Ethernet | 4 x 25 GbE or 1 x 100 GbE* 4 x 10GbE w/ built in PHY Sync-E, 1588-V2 | 1 x 40 GbE 4 x 10GbE w/ built in PHY Sync-E, 1588-V2 | 1 x 40 GbE 4 x 10GbE w/ built in PHY Sync-E, 1588-V2 |
| USB 3.0 | 4 | 4 | 4 |
| PCIe | 18 (Gen 3.0 – 5 controllers)* | 18 (Gen 3.0 – 5 controllers)* | 18 (Gen 3.0 – 5 controllers)* |
| I2C | 6 | 6 | 6 |
| SPI | 1 | 1 | 1 |
| UART | 2 | 2 | 2 |
| GPIO | ✓ | ✓ | ✓ |
| SATA | 2 (Gen 3.0)* | 2 (Gen 3.0)* | 2 (Gen 3.0)* |
| SD/MMC | 1 | 1 | 1 |
| JTAG | JTAG Header | JTAG Header | JTAG Header |
| OS Support | Linux DPDK UEFI NXP Layerscape Secure Boot | Linux DPDK UEFI NXP Layerscape Secure Boot | Linux DPDK UEFI NXP Layerscape Secure Boot |
| Size | 125 x 95 mm COM Express Type 7 Package Dimensions: 140x100x40mm | 125 x 95 mm COM Express Type 7 Package Dimensions: 140x100x40mm | 125 x 95 mm COM Express Type 7 Package Dimensions: 140x100x40mm |
| Interface | COM Express Type 7 Headers | COM Express Type 7 Headers | COM Express Type 7 Headers |
| Main Voltage | 12V | 12V | 12V |
| I/O Voltage | 3.3V | 3.3V | 3.3V |
| Temperature | Commercial: 0°C to 70°C Industrial: -40°C to 85°C | Commercial: 0°C to 70°C Industrial: -40°C to 85°C | Commercial: 0°C to 70°C Industrial: -40°C to 85°C |
| Humidity | Humidity (non-condensing): 10% – 90% | Humidity (non-condensing): 10% – 90% | Humidity (non-condensing): 10% – 90% |
| Green Compliance | Halogen Free | Halogen Free | Halogen Free |
(*) Configurable SERDESs based on NXP LX2160A processor specifications.
| ClearFog CX LX2 | HoneyComb LX2 | |
|---|---|---|
| I/Os | 3 x USB 3.0 3 x USB 2.0 | 3 x USB 3.0 3 x USB 2.0 |
| Networking | 1 x QSFP port 100GbE 4 x SFP+ ports (10GbE each) 1 x 1GbE copper (RJ45) | 4 x SFP+ ports (10GbE each) 1 x 1GbE copper (RJ45) |
| Processor | NXP Layerscape LX2160A 16-core Arm Cortex A72 up to 2GHz | NXP Layerscape LX2160A 16-core Arm Cortex A72 up to 2GHz |
| Memory & Storage | Up to 64GB DDR4 DIMM 64GB eMMC MicroSD 4 x SATA 3.0 | Up to 64GB DDR4 DIMM 64GB eMMC MicroSD 4 x SATA 3.0 |
| Misc. | USB to STM32 for remote management | USB to STM32 for remote management |
| Development and Debug interfaces | Micro USB JTAG | Micro USB JTAG |
| Power | ATX standard | ATX standard |
| Expansion card I/Os | 1 x PCIe x8 Gen 3.0, open slot (can support x16) 1 x M.2 | 1 x PCIe x8 Gen 3.0, open slot (can support x16) 1 x M.2 |
| Temperature | Commercial: 0°C to 70°C | Commercial: 0°C to 70°C |
| Dimensions | PCBA: 170 x 170mm | PCBA: 170 x 170mm |
(*) See list of tested SO-DIMM DDR4 modules.
LX2160 Heatsink & Fan
Fits CEx7 LX2160A COM Express type 7 module.
*Please note: by default HoneyComb LX2K, ClearFog CX LX2K boards and CEx7 LX2160A COM ship with a heatsink.
Kingston HyperX 32GB SO-DIMM DDR4 (2x 16GB)
Kingston HyperX 2 x 16GB SO-DIMM DDR4 Memory
HX432S20IBK2/32
Blank SanDisk Class 10 Micro SD 16GB
Please use the template below to create the configuration you are interested in. Since there are many options for each SOM configuration it is not possible to keep all of them in stock, for this purpose SolidRun provides off the shelf configurations with high runner part numbers, please visit our shop to review all of them.
| Fixed parameter | CPU Type | Cores option | SPI | Memory | eMMC | Revision | Temperature | Fixed parameter |
| SR | X2 | XXX | SXX | DXXX | EXXX | VXX | X | 0 |
| Fixed parameter | CPU Type | Cores option | SPI | Memory | eMMC | Revision | Temperature | Fixed parameter |
| SR | X2 = Layerscape LX2 | 160 = 16 cores 120 = 12 cores 080 = 8 cores | S01 = 64MB | D00G = No DDR D04G = 4GB D08G = 8GB D16G = 16GB D32G = 32GB D64G = 64GB | E000 = No eMMC E008 = 8GB E016 = 16GB E032 = 32GB E064 = 64GB | V21 | C = Commercial I = Industrial | 0 |
