COM Express Type 7, 8/12/16 x Arm Cortex-A72, up to 2.2GHz
| wdt_ID | Feature | Details |
|---|---|---|
| 1 | CPU | Default configuration: NXP Layerscape LX2160A 16 x Cortex A72. Optional configurations: LX2120A 12 x Cortex A72, LX2080A 8 x Cortex A72 |
| 2 | CPU Speed | 2.0GHz Commercial |
| 3 | RAM | Dual channel up to 64GB DDR4 |
| 4 | Internal Storage | 64GB eMMC 64MB SPI |
| 5 | External Storage Support | NOR-Flash SD PCIe-SSD |
| 6 | Ethernet | 4 x 25 GbE or 1 x 100 GbE* 4 x 10GbE w/ built in PHY Sync-E, 1588-V2 |
| 7 | USB 3.0 | 4 |
| 8 | PCIe | 18 (Gen 3.0 – 5 controllers)* |
| 9 | I2C | 6 |
| 10 | SPI | 1 |
| 11 | UART | 2 |
| 12 | GPIO | ✓ |
| 13 | SATA | 2 (Gen 3.0)* |
| 14 | SD/MMC | 1 |
| 15 | JTAG | JTAG Header |
| 16 | OS Support | Linux DPDK UEFI NXP Layerscape Secure Boot |
| 17 | Size | 125 x 95 mm COM Express Type 7 Package Dimensions: 140x100x40mm |
| 18 | Interface | COM Express Type 7 Headers |
| 19 | Main Voltage | 12V |
| 20 | I/O Voltage | 3.3V |
| 21 | Temperature | Commercial: 0°C to 70°C Industrial: -40°C to 85°C |
| 22 | Humidity | Humidity (non-condensing): 10% – 90% |
| wdt_ID | Feature | Details |
|---|---|---|
| 1 | CPU | Default configuration: NXP Layerscape LX2160A 16 x Cortex A72. Optional configurations: LX2120A 12 x Cortex A72, LX2080A 8 x Cortex A72 |
| 2 | CPU Speed | 2.0GHz Commercial |
| 3 | RAM | Dual channel up to 64GB DDR4 |
| 4 | Internal Storage | 64GB eMMC 64MB SPI |
| 5 | External Storage Support | NOR-Flash SD PCIe-SSD |
| 6 | Ethernet | 4 x 25 GbE or 1 x 100 GbE* 4 x 10GbE w/ built in PHY Sync-E, 1588-V2 |
| 7 | USB 3.0 | 4 |
| 8 | PCIe | 18 (Gen 3.0 – 5 controllers)* |
| 9 | I2C | 6 |
| 10 | SPI | 1 |
| 11 | UART | 2 |
| 12 | GPIO | ✓ |
| 13 | SATA | 2 (Gen 3.0)* |
| 14 | SD/MMC | 1 |
| 15 | JTAG | JTAG Header |
| 16 | OS Support | Linux DPDK UEFI NXP Layerscape Secure Boot |
| 17 | Size | 125 x 95 mm COM Express Type 7 Package Dimensions: 140x100x40mm |
| 18 | Interface | COM Express Type 7 Headers |
| 19 | Main Voltage | 12V |
| 20 | I/O Voltage | 3.3V |
| 21 | Temperature | Commercial: 0°C to 70°C Industrial: -40°C to 85°C |
| 22 | Humidity | Humidity (non-condensing): 10% – 90% |

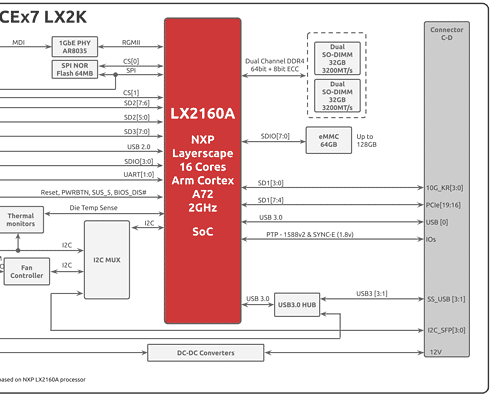

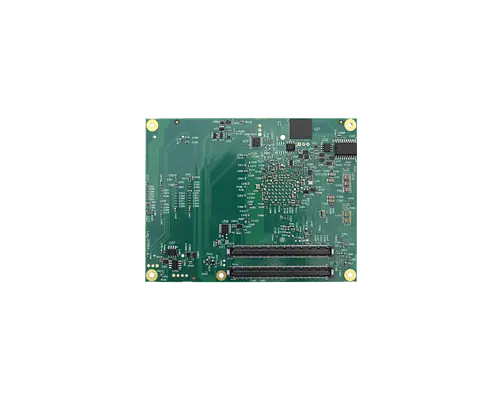

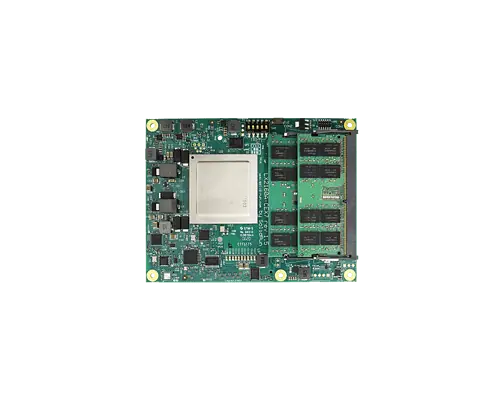

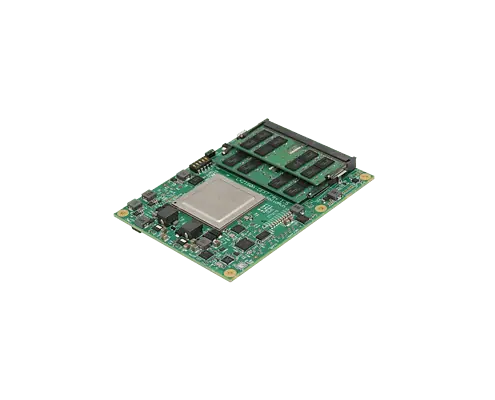

SolidRun’s LX2160A Computer-on-Module based on the COM Express type 7 form factor was designed to provide a robust and modular networking computing platform. The Layerscape LX2160A features extended processing power, connectivity options and high-end networking capabilities – making it the ideal platform for an almost endless variety of networking and edge solutions.
Layerscape LX2160A COM Express type 7 module features 16 Arm Cortex A72 processors, quad 10GbE, and 18 x PCIe Gen 3.0 lanes, providing plenty of bandwidth for data path processing in multiple networking layers.
For flexibility and scalability, SolidRun also offers the alternate Layerscape SoCs: LX2120A and LX2080A featuring 12 and 8 cores, with all other features and abilities remaining the same.
Learn more about COM Express Type 7 standard.
