NXP i.MX 6 / i.MX 8M Plus Based ARM
Low-Power Computer
Sometimes the best solutions are the most simple and the CuBox lineup of products packs all the necessities for a compute platform into a tiny silent form factor. It is just as comfortable running a kiosk interface in a store as sitting on a software developer’s desk, and flexible enough to do all that and more. CuBox is designed to be a simple plug and play solution to run the embedded software you need without all the cable clutter and exposed silicon you get with a typical developer board.
| COMPARISON | Cubox-i | Cubox-M |
|---|---|---|
| I/Os | 2 x USB 2.0 1 x eSATA | 2 x USB 3.0 |
| Networking | 1 x Ethernet RJ45 10/100/1000 (max 470 MB/s) 1 x 802.11 a/b/g/n WiFi and Bluetooth (Optional) | 1 x Ethernet RJ45 10/100/1000 1 x 802.11 a/b/g/n/ac WiFi and Bluetooth (Optional) |
| Processor | NXP i.MX6 Single to Quad core Arm Cortex A9 up to 1GHz | NXP i.MX 8M Plus Quad core Arm Cortex A53 up to 1.8GHz (with Arm M7 GPP) |
| Memory & Storage | Up to 2GB DDR3 8GB eMMC MicroSD | Up to 8GB LPPDR4 8GB eMMC MicroSD |
| Display | HDMI | HDMI |
| Misc. | Reset button RTC IR reciver | GPIO button Indication LEDs RTC IR receiver |
| Development and Debug interfaces | Micro USB | Micro USB |
| Power | 5V | 12V Optional PoE |
| Expansion card I/Os | None | None |
| Temperature | Commercial: 0°C to 40°C | Commercial: 0°C to 40°C |
| Dimensions | 50 x 50 x 50mm | 50 x 50 x 50mm |
| Enclosure | ABS Plastic | ABS Plastic |
To simplify development and deployment to our customers SolidRun SW R&D teams are set to provide:
– Optimized BSP.
– Stable long term support for selected distributions.
– Ongoing contributions to mainline projects and community initiatives.
All of our public source code is available on our GitHub page.
SolidRun Developer Center is a knowledge base platform that contains hundreds of articles about topics such as getting started, product documentation and reference designs, in-depth software articles,
software development guidelines and much more.
New articles are added on a weekly basis by our hardware and software engineers.
For more information about the CuBox-i software section click here.
For more information about the CuBox-M/Pulse software section click here.
Our global technical support department will be happy to assist you, don’t hesitate to contact us!

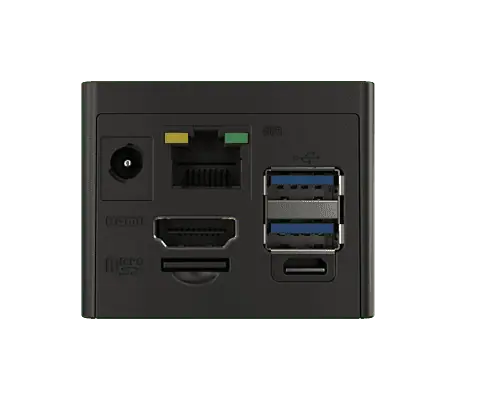

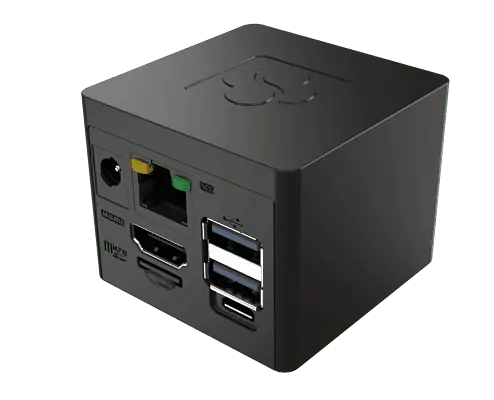

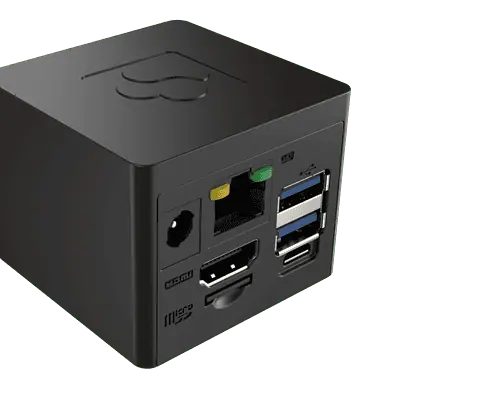

Featuring the same well known form factor, CuBox-M and its iMX8M Plus based SOM adds 2.3 TOPs of neural network acceleration inside. This makes it the perfect quick to market solution for your latest vision processing application (check out our other i.MX8 products). With built in power over ethernet support, as well as high speed wireless connectivity options you can get CuBox up and running with just a single cable plugged into it. Add an HDMI display and a USB camera and now you have a full solution ready for application development, product testing, digital signage, or smart kiosk applications. With its low power consumption and fanless design, CuBox is ready to go anywhere.
| CuBox M | |
|---|---|
| I/Os | 2 x USB 3.0 |
| Networking | 1 x Ethernet RJ45 10/100/1000 1 x 802.11 a/b/g/n/ac WiFi and Bluetooth |
| Processor | NXP i.MX 8M Plus Quad core Arm Cortex A53 up to 1.8GHz (with Arm M7 GPP) |
| Memory & Storage | Up to 8GB LPPDR4 8GB eMMC MicroSD |
| Display | HDMI |
| Misc. | GPIO button Indication LEDs RTC IR receiver |
| Development and Debug interfaces | Micro USB |
| Power | 12V PoE |
| Temperature | Commercial: 0°C to 40°C |
| Dimensions | 50 x 50 x 50mm |
| Enclosure | ABS Plastic |

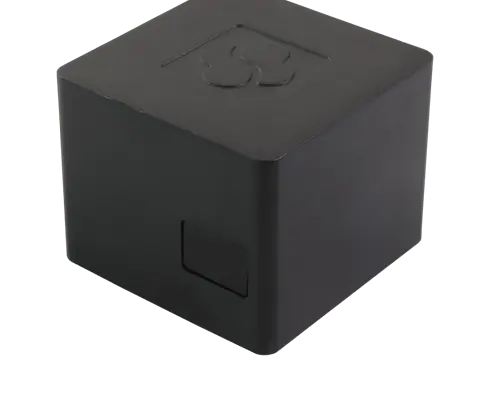

Digital signs have become an important part of modern life, providing important information or advertising in key positions, such as highways, airport lobbies, bus stations and retail outlets. CuBox-i is a small scale, modular robust processing platform – suited for creating fast, high quality digital signage networks.
We carefully select components and technologies that will ensure high quality materials and manufacturing processes, while keeping costs at levels that enable us to provide a competitive and viable product.
| Model | CuBox i1 | CuBox i2 | CuBox i2eX | CuBox i4P |
|---|---|---|---|---|
| I/Os | 2 x USB 2.0 1 x eSATA | 2 x USB 2.0 1 x eSATA | 2 x USB 2.0 1 x eSATA | 2 x USB 2.0 1 x eSATA |
| Networking | 1 x Ethernet RJ45 10/100/1000 (max 470 MB/s) 1 x 802.11 a/b/g/n WiFi and Bluetooth (2.4 GHz) | 1 x Ethernet RJ45 10/100/1000 (max 470 MB/s) 1 x 802.11 a/b/g/n WiFi and Bluetooth (2.4 GHz) | 1 x Ethernet RJ45 10/100/1000 (max 470 MB/s) 1 x 802.11 a/b/g/n WiFi and Bluetooth (2.4 GHz) | 1 x Ethernet RJ45 10/100/1000 (max 470 MB/s) 1 x 802.11 a/b/g/n WiFi and Bluetooth (2.4 GHz) |
| Processor | NXP i.MX 6 Single core Arm Cortex A9 up to 1GHz | NXP i.MX 6 Dual Lite core Arm Cortex A9 up to 1GHz | NXP i.MX 6 Dual core Arm Cortex A9 up to 1GHz | NXP i.MX 6 Quad core Arm Cortex A9 up to 1GHz |
| Memory & Storage | 512MB DDR3 8GB eMMC MicroSD | 1GB DDR3 8GB eMMC MicroSD | 1GB DDR3 8GB eMMC MicroSD | 2GB DDR3 8GB eMMC MicroSD |
| Display | HDMI | HDMI | HDMI | HDMI |
| Misc. | Reset button RTC IR reciver | Reset button RTC IR reciver | Reset button RTC IR reciver | Reset button RTC IR reciver |
| Development and Debug interfaces | Micro USB | Micro USB | Micro USB | Micro USB |
| Power | 5V | 5V | 5V | 5V |
| Expansion card I/Os | None | None | None | None |
| Temperature | Commercial: 0°C to 40°C | Commercial: 0°C to 40°C | Commercial: 0°C to 40°C | Commercial: 0°C to 40°C |
| Dimensions | 50 x 50 x 50mm | 50 x 50 x 50mm | 50 x 50 x 50mm | 50 x 50 x 50mm |
| Enclosure | ABS Plastic | ABS Plastic | ABS Plastic | ABS Plastic |
Micro USB cable For CuBox-i
Power Adapter For CuBox-i
SD card for CuBox-i
12V 1.5A US Power Adapter
Power Adapter For CuBox Pulse
12V 1.5A EU Power Adapter
Power Adapter For CuBox Pulse
Please use the template below to create the configuration you are interested in. Since there are many options for each SOM configuration it is not possible to keep all of them in stock, for this purpose SolidRun provides off the shelf configurations with high runner part numbers, please visit our shop to review all of them.
| Fixed parameter | CPU Type | Cores option | WiFi/BT | Memory | eMMC | Carrier Board | Revision | Temperature | Enclosure |
| SR | MXX | XX | WXX | DXXX | EXXX | X | XX | C | E |
| Fixed parameter | CPU Type | Cores option | WiFi/BT | Memory | eMMC | Carrier Board | Revision | Temperature | Enclosure |
| SR | MX6 = i.MX6 MP8 = i.MX8M Plus | For i.MX6:
SO = Solo For i.MX8: QD = Quad | For i.MX6:
W00 = Without WiFi/BT For i.MX8: | For i.MX6:
D512 = 512MB For i.MX6: D01G = 1GB | E000 = No eMMC E008 = 8GB E016 = 16GB E032 = 32GB E064 = 64GB | X = Pro U = M | 00 | C = Commercial | E = Enclosure |
