i.MX8M Computer on Module

Up to 4 x Arm Cortex-A53 cores, 1 x Cortex-M4

  • Dual to Quad core ArmV8 64-bit processors up to 1.5GHz
  • Onboard Dual Band WiFi 802.11 a/b/g/n/ac with programmable 2.4Ghz SDR
  • Multimedia powerhouse with 4K and dual display support with high-speed USB 3.0 and PCIe interfaces, 1080p60 video decode/encode

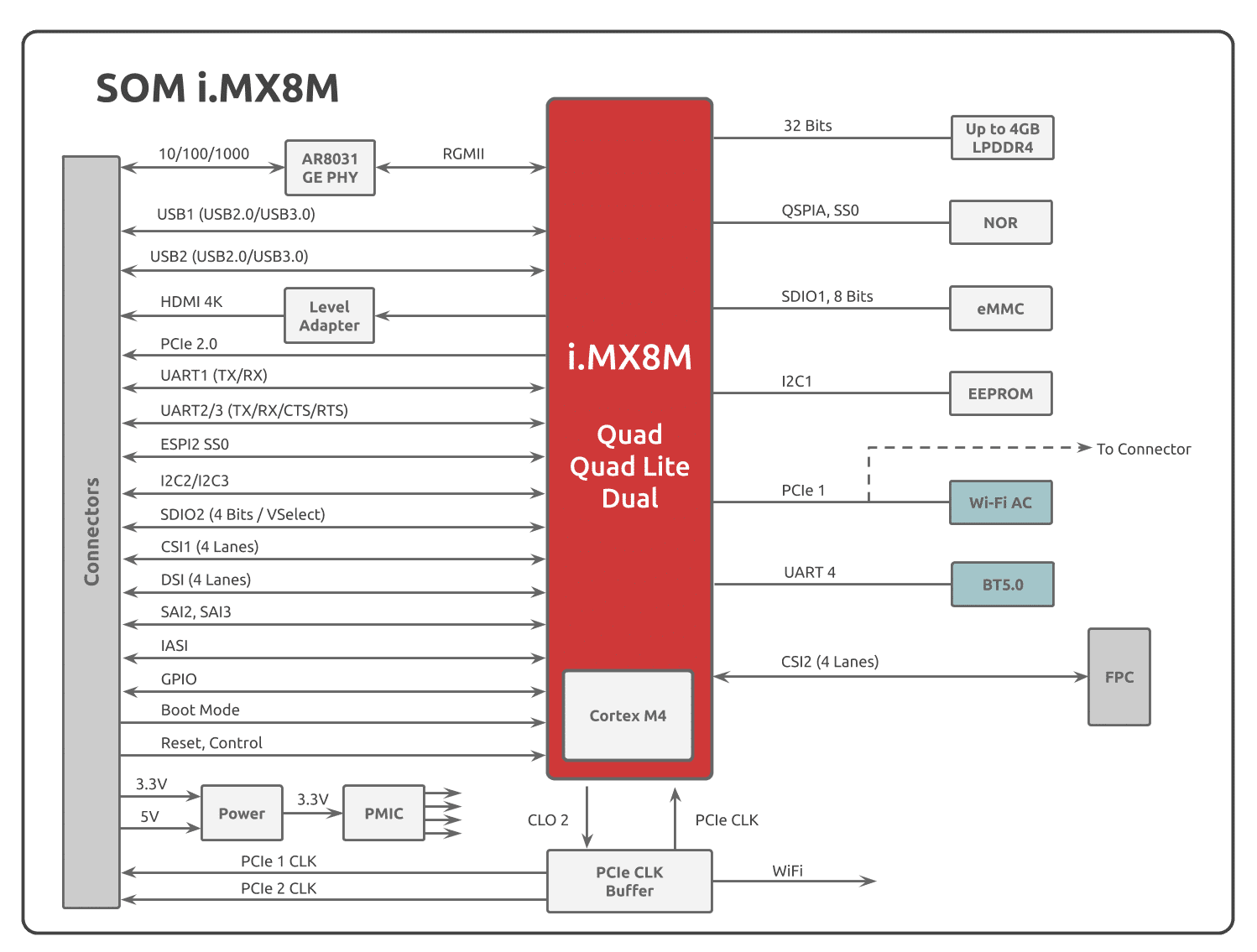

imx8m SOM block diagram

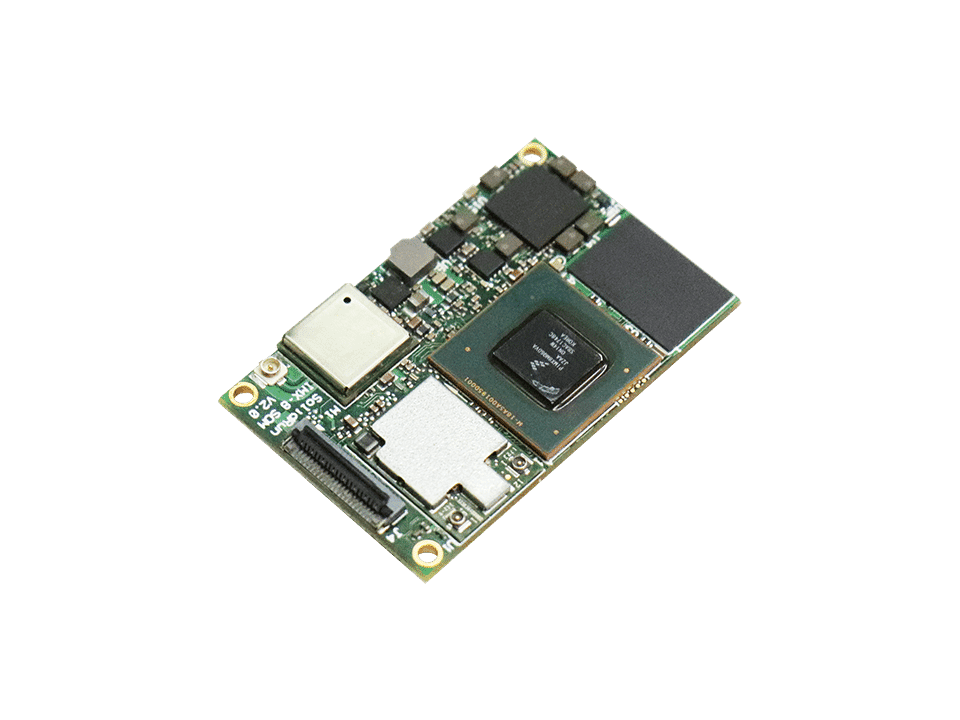

The i.MX8M SOM – Powerful, Flexible and Compact

SolidRun’s i.MX8M based System on Module (SOM) harnesses NXP’s powerful i.MX 8M in a flexible & compact SOM including a memory subsystem, power management subsystem, networking and system interconnectivity. The i.MX8M SOM will allow developers and OEMs to simplify the production cycle and reduce time-to-market drastically.

The NXP i.MX 8M is the powerful new player in the embedded systems world, with Quad 1.5 GHz ARM® Cortex®-A53 & Cortex-M4 cores, full 4K UltraHD resolution, HDR video quality and 20 audio channel support..

  • Processing Power

    Power optimized for fanless operation, the powerful Cortex A53 cores can be shut down while the M4 core subsystem keeps the code running allowing to achieve low power and real-time system monitoring.

  • Industry Leading

    SolidRun’s i.MX8M SOM is built with industry leading voice, audio and video processing. With high end features like 4K resolution, professional audio fidelity with up to 20 audio channels for general purpose HMI applications / industrial automation / home audio.

  • Multimedia Oriented

    The i.MX 8M SOM can support dual independent displays over HDMI and MIPI-DSI interfaces for applications such as smart classroom, digital signage and more.

  • Video Playback

    Supports 10-bit video with HDR and enhanced video brightness / colors to display the finest details in applications such as medical imaging, quality assurance final inspection and detailed inspection.

i.MX8m plus logos7

Related Articles

Our Approach

To simplify development and deployment to our customers SolidRun SW R&D teams are set to provide:
– Optimized BSP.
– Stable long term support for selected distributions.
– Ongoing contributions to mainline projects and community initiatives.
All of our public source code is available on our GitHub page.

debianyoctobuild

Where to Start?

SolidRun Developer Center is a knowledge base platform that contains hundreds of articles about topics such as getting started, product documentation and reference designs, in-depth software articles,
software development guidelines and much more.
New articles are added on a weekly basis by our hardware and software engineers.

For more information about the i.MX8M software section click here.

btn developerCenter 2

Always There for You

Our global technical support department will be happy to assist you, don’t hesitate to contact us!

SOM i.MX 8M Dual

SOM i.MX 8M Quad

CPU DetailsNXP i.MX8M Dual
2 x Cortex A53
1 x Cortex M4
NXP i.MX8M Quad
4 x Cortex A53
1 x Cortex M4
CPU Speed1.5GHz Commercial
1.3GHz Industrial
1.5GHz Commercial
1.3GHz Industrial
Floating PointVFPv4VFPv4
SIMDNEONNEON
RAM1GB LPDDR43GB LPDDR4
Internal Storage8GB eMMC8GB eMMC
External Storage SupportNOR-Flash
SD
PCIe-SSD
NOR-Flash
SD
PCIe-SSD
Ethernet10/100/1000 Mbps10/100/1000 Mbps
Wireless802.11 ac/a/b/g/n + BT 5.0802.11 ac/a/b/g/n + BT 5.0
GPUVivante GC7000 LiteVivante GC7000 Lite
3D GPU SupportOpenGL ES1.1/2.0/3.0/3.1, OpenCL 1.2 & Vulkan
OpenGL ES1.1/2.0/3.0/3.1, OpenCL 1.2 & Vulkan
Video Decoder4Kp60 4Kp60
Display InterfacesHDMI 2.0, MIPI-DSIHDMI 2.0, MIPI-DSI
Camera Interface2 x MIPI-CSI2 (4 Lane each)2 x MIPI-CSI2 (4 Lane each)
S/PDIF Input / Output11
Digital Audio Serial Interface
20 channels, 32bits @384khz, DSD512, HDMI ARC20 channels, 32bits @384khz, DSD512, HDMI ARC
USB 3.022
PCIe2 (Gen 2.0)2 (Gen 2.0)
I2C22
SPI11
UART2 (RTS/CTS/RX/TX) +1 (TX/RX)2 (RTS/CTS/RX/TX) +1 (TX/RX)
GPIO7575
PWM44
SD/MMC22
JTAGTest point headerTest point header
OS SupportLinuxLinux
Size47 x 30 mm47 x 30 mm
Interface3 x Hirose DF40 connectors3 x Hirose DF40 connectors
Main Voltage5V5V
I/O Voltage3.3V3.3V
TemperatureCommercial: 0°C to 70°C
Industrial: -40°C to 85°C
Commercial: 0°C to 70°C
Industrial: -40°C to 85°C
HumidityHumidity (non-condensing): 10% – 90%Humidity (non-condensing): 10% – 90%
HummingBoard pulse 1
HummingBoard ripple
HummingBoard PulseHummingBoard Ripple
I/Os2 x USB 3.0
1 x MIPI-CSI
1 x Digital audio (Riser interface FPC connector)
1 x Onboard audio codec
2 x USB 3.0
1 x MIPI-CSI
Networking2 x Ethernet RJ45 10/100/1000
1 x 802.11 a/b/g/n/ac WiFi and Bluetooth (2.4/5 GHz)
1 x Ethernet RJ45 10/100/1000
1 x 802.11 a/b/g/n/ac WiFi and Bluetooth (2.4/5 GHz)
ProcessorNXP i.MX 8M Dual / Quad core Arm Cortex A53 up to 1.5GHz (with Arm M4 GPP)NXP i.MX 8M Mini Single to Quad core Arm Cortex A53 up to 1.8GHz (with Arm M4 GPP)
Memory & StorageUp to 4GB LPDDR4
8GB eMMC
MicroSD
Micro HDMI
1 x MIPI-CSI
DisplayHDMI
MIPI-DSI
micro HDMI
Misc.1 x Reset button
1 x Configurable push button
3 x LED indicators
RTC
1 x Reset button
1 x Configurable push button
3 x LED indicators
RTC
Development and Debug interfacesMicro USBMicro USB
Power7V – 36V
PoE sink support 802.3af Class 0
7V – 36V
Expansion card I/OsM.2
Mini Pcie with SIM holder
mikroBUS header
Mini Pcie with SIM holder
TemperatureCommercial: 0°C to 70°C
Industrial: -40°C to 85°C
Commercial: 0°C to 70°C
Industrial: -40°C to 85°C
DimensionsPCBA: 100 x 70mm
Enclosure : 120 x 80 x 30mm
PCBA: 100 x 70mm
Enclosure : 120 x 80 x 30mm
EnclosureExtruded aluminumExtruded aluminum
Screen Shot 2020 07 06 at 17.09.23

i.MX8M / i.MX8M Mini Heatsink

Fits the i.MX8M / i.MX8M Mini SOMs

Accessioru imx8m mini

UFL 2.4Ghz PCB Antenna

Fits the i.MX8M / i.MX8M Mini SOMs

Please use the template below to create the configuration you are interested in. Since there are many options for each SOM configuration it is not possible to keep all of them in stock, for this purpose SolidRun provides off the shelf configurations with high runner part numbers, please visit our shop to review all of them.

Part number structure
Fixed parameterCPU TypeCores optionWiFi/BTMemoryeMMCRevisionTemperatureFixed parameter
SRMX8XXWXXD0XGEXXXV20X0
Options for parameters
Fixed parameterCPU TypeCores optionWiFi/BTMemoryeMMCRevisionTemperatureFixed parameter
SRMX8DU = Dual
QD = Quad
W00 = Without WiFi/BT
WB1 = Include WiFi/BT
D01G = 1GB
D02G = 2GB
D03G = 3GB
D04G = 4GB
E000 = No eMMC
E008 = 8GB
E016 = 16GB
E032 = 32GB
E064 = 64GB
V20C = Commercial
I = Industrial
0

    SKUs can be found using our product configuration tool
